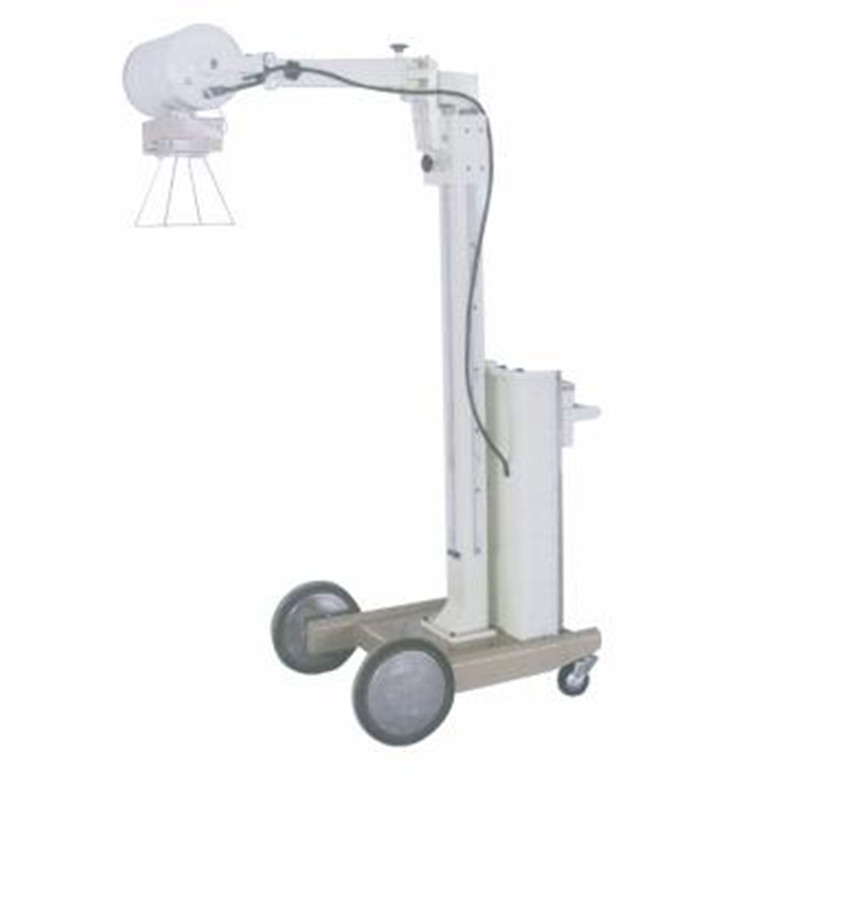

This equipment is commonly used in ward and emergency treatment room for radiography. Main charactor:
Combined X-ray generator.
Single focus, Bridge rectification.
It is precise, safe, reliable and flexible.
Remote control device(control range is over 5m) is available.
Main Technical Data:
X-ray GeneratorStationary Anode, Single focus, and bridge silicon rectification, The X-ray Generator is an oil-immersed self-cooled unit
Max Rated CapacityCurrent 50mA 30mA
Voltage: 90kvp
Time: 2s 6.3s
Power SupplyVoltage: 180-240V
Frequency: 50Hz
Power: Not lower than 5Kva
Resistance: Not large than 1Ω
Voltage Adjustment range of x-ray tube45-90Kvp, Divided into 10 steps
Range of the timer0.08-6.3s
Distance between the focus to the screen600-1630mm
X-ray TubeLongitudinal movement: 240mm; Transverse rotation: 60°
Specification of X-ray TubeModel: XD3-3.5/100 Fixed anode, single focus 2.6mm
Packing: 1set/Woodencase, 1040x755x2050
Net weight: 127kgs
Max Rated Capacity | Voltage | Time | Power Supply Voltage | Frequency | Net Weight | Gross Weight | Packing Size |
50mA 30mA | 90kvp | 2s 6.3s | 180-240V | 50Hz | 127kgs | 305kgs | 1040X755X2050cm |
