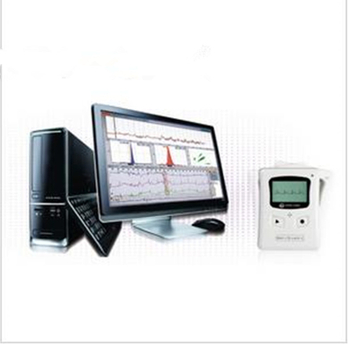

12 Channel Holter System (AECG-12A)

Quantity:
  • AECG-12A
  • Digital EEG/ECG/EKG/EMG/VCG
  • All People
  • 24 Hoursand Extend LCD Life
  • ≤±5%
  • 0oc~ +45oc
  • 86 ~ 106kpa
  • CE
  • 90181100
  • Physiological Functions of Diagnosis and Monitoring Equipment
  • CE, ISO13485
  • 12
  • 0.1 ~ 60Hz
  • ≥3.2s
  • 0oc
  • everich
  • China
12 Channel HolterSystem ---- AECG-12A

Features for Recorder



           One of the most delicate recorder in the world
           Compatible with most of the worldwide popular Holter analysis software
           12 channel recorder with same signal shapes as that of a standard 12 lead resting ECG machineg
           High resolution LCD to display ECG waveform, operation status and recording time
           Visual and audible alarm to indication each abnormality
           Patient event button for immediate recording unusual action and emotion of the patient
           Built in SD card of bulk capacity to avoid damage due to frequent plug in/out
           Properly settled sampling rate and frequency response to support advanced diagnostic tools
           Automatic correlation of patient event button
           Professional database management supports automatic sort, index and archiving of all ECG data
           Special system for report editing, predefined and/or user defined report formats, and custormized report options
           Customized language setting makes it easy for customer-sided multi-lingual transformation




Features for Software



           Validated by AHA and MIT database
           Intuitive Windows based, user friendly interface with interactive graphs & histograms
           Multi-windows display to refrain the operator/doctor from frequent operation during data management
           Supports 3 channel and 12 channel recorder
           Professional software wizard to guarantee data transferring and analysis finished in less than 3 minutes
           Up to 97% of accuracy in QRS analysis
           Enhanced performance of ST analysis
           Advanced diagnostic tools for analysis of QTd,  HRV, Atrial Fibrillation/flutter, T wave alteration, HRT and OSAS
           Automatic correlation of patient event button
           Professional database management supports automatic sort, index and archiving of all ECG data
           Special system for report editing, predefined and/or user defined report formats, and custormized report options
           Customized language setting makes it easy for customer-sided multi-lingual transformation
 Sfety Level: Class I, Type B
         Patient Cable: 10 leadwire integrated patient cableut
         Channel: 3/12 channelone touch operation
         Resolution: 12 bition
         Recording: Full disclosure, no compressionout
         Data Transferring: Built in SD card and USB interface
         Sampling Rate: 250Hzprinting
         ECG Signal Verification: LCD at hook up recording
         Recording Time: 24 hoursand extend LCD life
         Operating Position: Belt clip, Lanyard exams
         Input Circuit Current: <0.1μAmemory
         Inter-channel Interference: <0.15mVprior to operation
         Input Impedance: >10MΩof XML, JPG, PDF, etc
         Sensitivity: 10mm/mV±5%
         Polarizing Voltage: ±300mV
         CMRR: >60dB
         Frequency Response: 0.1 ~ 60Hz
         Minimum Input Signal:
50μV
         Baseline Stability: ≤±5%
         Time Constant: ≥3.2s
         Dynamic Input Voltage: ≥±4.5mV
         Memory Capacity: ≥4G
         Power Consumption: <0.1VA
         Battery: 1pc AA battery, 1.5V for typicl 24 hours
         Operating Temperature:  0ºC~ +45ºC
         Non-Operating Temperature:  0ºC
         Operating Humidity: 10% ~ 95% (non condensing)
         Non-Operating Humidity: 5% ~ 95% (non condensing)
         Atmospheric Pressure: 86 ~ 106kPa

Channel Recording Time Frequency Response Baseline Stability Time Constant Operating Temperature Non-Operating Temperature Atmospheric Pressure
12 24 hoursand extend LCD life 0.1 ~ 60Hz &le;&plusmn;5% &ge;3.2s 0ºC~ +45ºC 0ºC 86 ~ 106kPa
