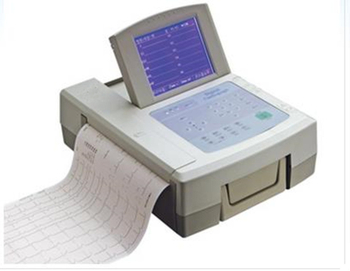

ECG-1220
Digital EEG/ECG/EKG/EMG/VCG
All People
1mv±5%
12 Bit
0.05 ~ 100Hz
±400mv
5.7 Inch 320X240 Color LCD
CE, ISO
90181100
Physiological Functions of Diagnosis and Monitoring Equipment
CE, ISO13485
Standard 12 Leads
1ms
≥3.2s
6.25, 12.5, 25, 50mm/S
2.5, 5, 10, 20, 40mm/Mv
everich
China
Lead | Standard 12 leads |
Input Circuit | Isolated input circuit Protection against defibrillation and pace making |
Data Acquisition | Simultaneously 12 lead acquisition |
Calibration Voltage | 1mV±5% |
Sampling Rate | 1ms |
A/D Converter | 12 bit |
Filter | AC filter, EMG filter, DFT filter |
CMRR | > 60dB > 100dB (AC filter in use) |
Input Circuit Current | ≤0.1μA |
Input Impedance | >50MΩ |
Patient Leakage Current | <10μA |
Time Constant | ≥3.2s |
Frequency Response | 0.05 ~ 100Hz |
Noise Level | <15μVp-p |
Paper Speed | 6.25, 12.5, 25, 50mm/s |
Polarizing Voltage | ±400mV |
Sensitivity | 2.5, 5, 10, 20, 40mm/mV |
Baseline Control | Automatic baseline control Automatic inhibition of baseline drift |
Lead | Standard 12 leads |
Input Circuit | Isolated input circuit Protection against defibrillation and pace making |
Data Acquisition | Simultaneously 12 lead acquisition |
Calibration Voltage | 1mV±5% |
Sampling Rate | 1ms |
A/D Converter | 12 bit |
Filter | AC filter, EMG filter, DFT filter |
CMRR | > 60dB > 100dB (AC filter in use) |
Input Circuit Current | ≤0.1μA |
Input Impedance | >50MΩ |
Patient Leakage Current | <10μA |
Time Constant | ≥3.2s |
Frequency Response | 0.05 ~ 100Hz |
Noise Level | <15μVp-p |
Paper Speed | 6.25, 12.5, 25, 50mm/s |
Polarizing Voltage | ±400mV |
Sensitivity | 2.5, 5, 10, 20, 40mm/mV |
Baseline Control | Automatic baseline control Automatic inhibition of baseline drift |
