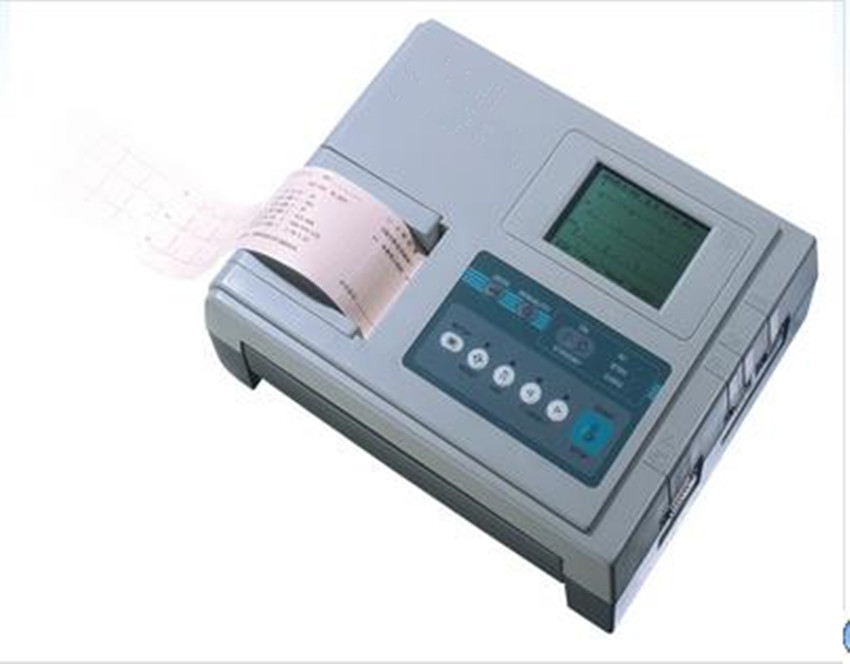

3 Channel Interpretive ECG (ECG-32AII)

Quantity:
  • ECG-32AII

  • Digital EEG/ECG/EKG/EMG/VCG

  • All People

  • 1mv±5%

  • 12 Bit

  • 0.05 ~ 150Hz

  • ±400mv

  • 3.8 Inch 320X240 LCD

  • CE, ISO

  • 90181100

  • Physiological Functions of Diagnosis and Monitoring Equipment

  • CE, ISO13485

  • Standard 12 Leads

  • 1.25ms

  • ≥3.2s

  • 6.25, 12.5, 25, 50mm/S

  • 2.5, 5, 10, 20mm/Mv

  • everich

  • China


Features:
   1/2/3/(3-2) channel printout format
           3.8 inch 320X240 LCD to display setting menu, operating conditions and waveform of 3/(3-2)/6/12 channel
           Rhythm lead with particular performance of histogram and trend graph for R-R interval
           Automatic measurement and interpretation of standard ECG parameter
           128 exams in memory for recall, duplication and transimission to PC
           Built in RS232/USB interface supporting data transmission to PC
           Able to enter patient info of ID, sex, age and weight
           Blingual operation
           Paper size: 63mmx20m roll type

Specfictions:

Lead

Standard 12 leads

Input Circuit

Isolated input circuit;
Protection against defibrillation and pace making

Data Acquisition

Simultaneously 12 lead acquisition

Calibration Voltage

1mV±5%

Sampling Rate

1.25ms

A/D Converter

12 bit

Filter

AC filter; EMG filter; DFT filter

CMRR

> 60dB;
> 100dB ( with AC filter in use)

Input Circuit Current

≤0.1μA

Input Impedance

>50MΩ

Patient Leakage Current

< 10μA

Time Constant

≥3.2s

Frequency Response

0.05 ~ 150Hz

Noise Level

< 15μVp-p

Paper Speed

6.25, 12.5, 25, 50mm/s

Sensitivity

2.5, 5, 10, 20mm/mV

Polarizing Voltage

±400mV

Baseline Control

Automatic baseline control
Automatic inhibition of baseline drift
