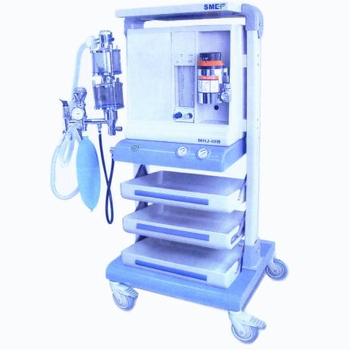

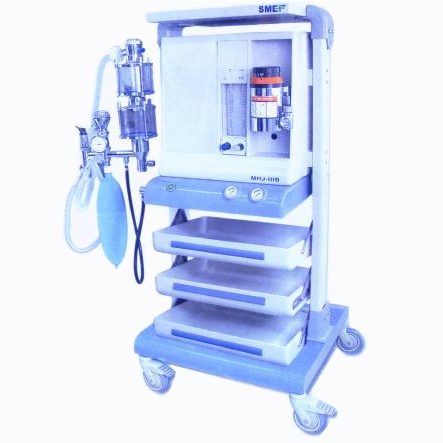

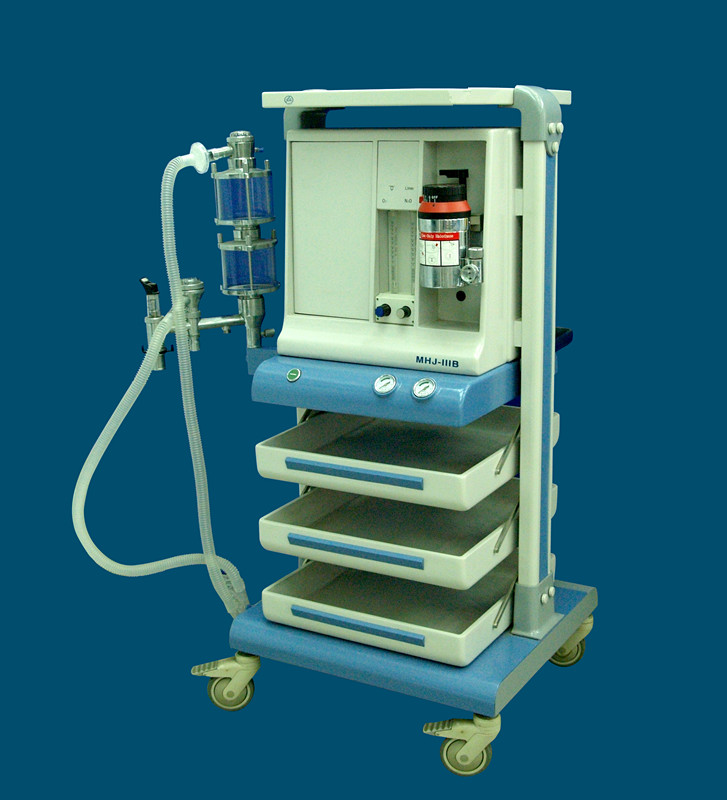

Anesthesia Machine MHJ-IIIB is a universal multi-functional anesthesia machine incorporating anesthesia,respiratory and monitoring,In design,it improves the reliability,safety and combination. This machine is equipped with the breathing system with ISO standard connectors and ZFG-B1 high-precision vaporizer. It's a dreamful multifunctional anesthesia machine for modern hospitals.
A flowmeter with ORC system ensures oxygen concentration not less than 25%. 1. With automatic N2O cut-off 2. O2deficiency alarm 3. SC-M3A1 anesthesia ventilator, with easy operation and low air consumption 3. Top plate intended for all kinds of monitors
Specifications:
Gas supply: 0.27~0.55Mpa Adjustment range of flow: O2 0.1~15L/min N2O: 0.05~10L/min ORC system: O2 concerntration ≥25%(O2 + N2O) O2 deficiency alarm/ N2O cut-off: Audible alarm occurs when O2 pressure ≤0.2Mpa, N2O is cut off when O2 pressure ≤0.1Mpa O2 flush: 35~75L/min (O2 pressure 0.45Mpa) Vaporizer: 0.2~5VOL% Adjustment range of APL: 0.5-7kPa
Anesthesia Machine MHJ-IIIB is a universal multi-functional anesthesia machine incorporating anesthesia,respiratory and monitoring,In design,it improves the reliability,safety and combination. This machine is equipped with the breathing system with ISO standard connectors and ZFG-B1 high-precision vaporizer. It's a dreamful multifunctional anesthesia machine for modern hospitals.
A flowmeter with ORC system ensures oxygen concentration not less than 25%. 1. With automatic N2O cut-off 2. O2deficiency alarm 3. SC-M3A1 anesthesia ventilator, with easy operation and low air consumption 3. Top plate intended for all kinds of monitors
Specifications:
Gas supply: 0.27~0.55Mpa Adjustment range of flow: O2 0.1~15L/min N2O: 0.05~10L/min ORC system: O2 concerntration ≥25%(O2 + N2O) O2 deficiency alarm/ N2O cut-off: Audible alarm occurs when O2 pressure ≤0.2Mpa, N2O is cut off when O2 pressure ≤0.1Mpa O2 flush: 35~75L/min (O2 pressure 0.45Mpa) Vaporizer: 0.2~5VOL% Adjustment range of APL: 0.5-7kPa
