- Summary

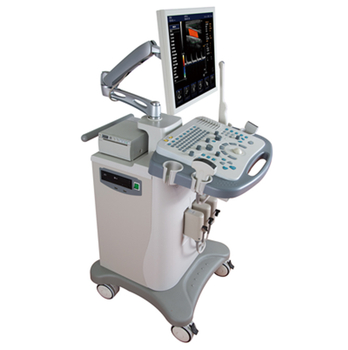

With high precision digital beam forming and Doppler ultrasonic imaging technology, the HY6000PRO incorporated the latest image processing technologies such as THI, speckle reduction, multi-beam parallel processing and efficient full-digital image management system is easy to acquire better image. Special measurement software packages, flexible configuration and ergonomical design greatly increase operators clinical diagnosis accruacy and analysis efficiency.
- Application
Abdomen, OB&GYN, cardiology, vascular and small parts, urology, musculoskeletal, pediatrics and etc
-Displaying mode
B\2B\4B\left&right B|M\B|D\PW\M\B mode part zoom; B|C|D\B|C|M\B|C duplex\PW\CFM\CPA
-Signal processing
Full-digital beam forming, dynamic filter, orthogonal demodulating, space-time filter, dynamic real-time receiving focusing, RDA, DRA, spectral processing, CFM processing
-Image processing
THI, speckle-reduction, color coder, frame averaging, micro- angle adjustment, wall filter, 256 grey scale, scanning angle/width control, composit processing of tissue and blood flow image
-General measurement
B mode: Distance, angle, perimeter and area (ellipse method, Trace method), volume, histogram, cross-section diagram
M mode: Cardiac rate, time, distance, speed.
-Measurement & report packages
GYN(four edition for GA calculation), cardiac, vascular, urology, andriatrics, peripheral vascular, multiple births, orthopedic surgery and etc.
-Storage function
Probe parameter, image, cine loop, measurement data and report
-Cine loop
Operated by automatically and manually, speed optional, searching cine loop, forward/ backward cine loop
- Input/output interface
VGA, network, USB, VIDEO, parallet communication port, serial communication port
-Standard configuration
Main unit, 3.5MHz convex probe, 17" LCD monitor, 3 probe connectors, DVD-RW, 6 USB ports, free arm,
-Optional configuration
3.5MHz micro-convex probe, 7.8MHz high-frequency linear probe, 7.0MHz transvaginal probe, color video printer, laser printer, DICOM3.0
| Displaying Mode | USB ports | LCD monitor | Micro-convex probe | Transvaginal Probe | Convex Probe | High-frequency linear probe |
| B,2,4B,left&right B|M,B|D,PW,M,B | 6 | 17" | 3.5MHz | 7.0MHz | 3.5MHz | 7.8MHz |
