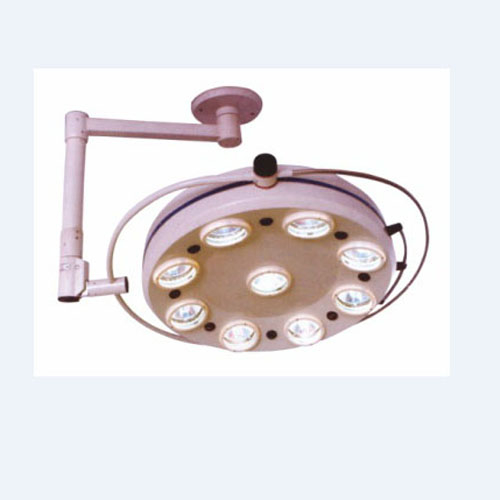

Cold Light Shadowless Operation Lamp in Hospital (model L739-II)

Quantity:
Inquire Add to Basket

  • L739-II

  • Operation Room

  • All People

  • Without

  • Nine

  • L739-II≥ 90000lx

  • ~220V± 500V 50Hz± 1Hz

  • 25W

  • 115*115*38(Cm)

  • 100*40*34(Cm)

  • CE, ISO

  • 85393910

  • Operating Light

  • ISO13485, ISO9001

  • Without

  • Without

  • Operation Lamp

  • 4000± 500k

  • 24V

  • 2800mm

  • 23kg

  • everich

  • China

Techonical datas:
Main Technical Data:
Llluminance: L739-II≥ 90000Lx
Color Temperature: 4000± 500K
Mains Voltage: ~220V± 500V 50Hz± 1Hz
Rated Voltage of Bulb: 24V
Rated Power of Bulb: 25W
The lowest height for lnstallation: 2800mm
Main technical parameters:
Illuminance ≥100000Lx
Color temperature 4000±500k
Color rendering index Ra≥85
Mains voltage ~220V,50Hz, ~110V,60Hz
Rated voltage of bulb 24V
Rated power of bulb 25W
The lowest height for lnstallation 2800mm

Packaging:


Type		 Parts Package dimension Gross weight Net weight Packing
L739-II lamp head 115×115×38(cm) 56(Kg) 23(Kg) Plywood box
Swivelling arm 100×40×34(cm) 51.5(Kg) 40(Kg) Plywood box

Installation requirements:

1.The basement should support a burden of 500Kg.If the height of the ceiling is more than 3.2m,one extension rack should be added(it can be specially made by us)
2.The ground lead of the user should be connected with the groud lead terminal of the product.(The kelly line at the base)
3.Please contact with the company for any special requirements in installation. Meanwhile, we take the job for installation.
