| Quantity: | |
|---|---|
DDS-307ⅅS-307A
± 0.5%(Fs)± 1bit
± 0.33%(Fs)± 1bit/3h
LCD
300 X 200 X 72
0.3 Degrees
CE, ISO
90318090
Cm-1: 0.01, 0.1, 1.0, 10.0
15o C-35o C
± 1.0%(Fs)± 1bit
AC (220 + 22) V; (50 + L) Hz
1.5kg
everich
China

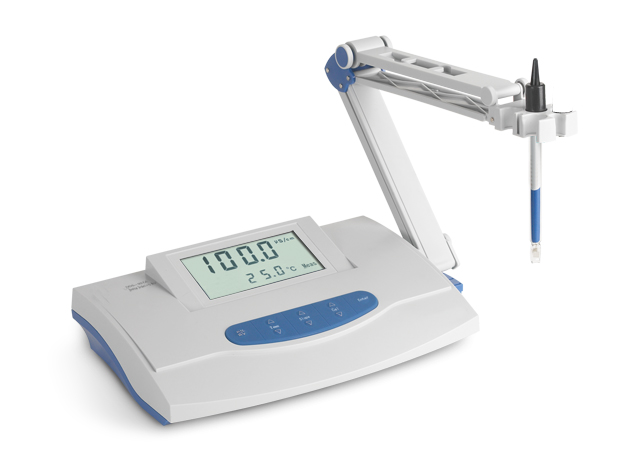

Measurement of conductivity, TDS, temperature, selection of electrode height of water
The main features:
The use of large screen, backlight, double digital display liquid crystal
With manual, automatic temperature compensation function
A novel planar design, appearance design patent No: ZL 200430036029.2
The electrical connector is lower than the plane, contribute to the preservation and safety
Titanium alloy electrode with conductivity cell constant 0.01cm-1 and the sealing groove is suitable for measurement, water measurement
With the factory DJS-1C type conductance electrode (platinum black), T-818-B-6 type temperature electrode
Technical indicators:
The instrument level: 1
1, measuring range:
Conductivity: (0 ~ 1 * 105) S/cm
TDS: (0 ~ 1000) mg/L
Temperature: (0 ~ 60) C
2, the basic error:
Conductivity: + 0.5% (FS + 1).
Temperature: 0.3 degrees
3, the stability: + 0.33% (FS + 1) /3h
4, temperature compensation range: (0 ~ 40) the reference temperature is 25 DEG C;
5, power: AC (220 + 22) V; (50 + L) Hz
6, size (mm): 300 x 200 x 72
7, weight: 1.5kg
8, the conductivity cell constant corresponding to the best conductivity measurement range
Electrode constant (cm-1)
| Model Specifications | DDS-307A | DDS-307 | |
| Parameters | Conductivity/TDS/ºC | Conductivity | |
| Range | Conductivity | 0.00μS/cm~100mS/cm | |
| TDS | 0 ~2000mg/L | - | |
| Salinity | - | ||
| Temperature | 0.0~60.0ºC | - | |
| Resolution | Conductivity | 0.01μS/cm | |
| TDS | 1 mg/L | - | |
| Temperature | 0.1ºC | - | |
| Accuracy | Conductivity | ±0.5%(FS) | |
| TDS | ±1.0%(FS) | ||
| Temperature | ±0.3ºC±1 bit | - | |
| Stability | (±0.33%(FS))/3h | ||
| Temp compensation | Manual/Auto 0.0~40.0ºC | Manual 15.0~35.0ºC | |
| Temp coefficient | 2% | ||
| Display | LCD, dual parameter | LCD, dual parameter | |
| Power | AC (220±22)V,(50±l )Hz | ||
| Case outside serial No. | WXS-A008-1 | WXS-A008-1 | |
| Dimension (mm),Weight(kg) | 300×220×90,1.3 | 300×220×90,1.3 | |
