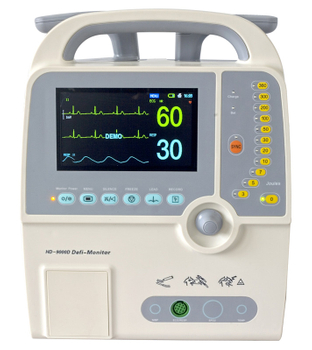

HD-9000DDefi-Monitor
Physicalcharacteristics:
| Dimensions (L*W*H) | 320*205*410 |
| Weight | 9.5kg |
| Defibrillator type | Manual, Synchronized, Asynchronized |
| Output waveform | Monophasic technology |
| Energyselection | 0,3,5,7,10,20,30,50,100,200,300,360joule(nominal at a resistance of 50) |
| Charging time | Maximum 8 seconds to 360 Joules |
| AC Power supply | 110V, 60 Hz /220V,50Hz |
| Vehicle Voltage | DC12V |
Display
-LED Dimensions | 7'diagonal {155mm*88mm} |
| Measurement method | Thoracic impedance |
Mainunit:Portable
Dimensions:L320xW205xH410cm
Weight:9.5kg
Technicalspecifications
DEFIBRILLATOR.
(1) Defibrillator type Manual, Synchronized, Asynchronized,
(2) Out putwaveform Monophasic technology
(3) Energyaccuracy ∠+1%
(4) Energyselection 0,3,5,7,10,20,30,50,100,200,300,360joule(nominal at a resistance of 50)
(5) Charging time Maximum 8 seconds to 360 Joules
(6) StandardAdult/Pediatric Paddles Reusableexternal adult paddles(pediatricpaddles integrated)
.Powerrequirements.
(a) AC Power supply 110V, 60 Hz /220V,50Hz
(b)Vehicle Voltage DC12V
Internal Battery Backup
(1) Batterytype Rechargeablelead-acid battery
(2) Charging time Time-Minimum of 4hours for full charging
(3)Battery charging DuringAC Power Supply operation of the device.
(4) Charging/LowBatteryIndication RedLED
(5)Battery Capacity 100%of the battery will provide 120 mins of monitoring; and 30discharges at 360 joules.
Display
-LED Dimensions 7'diagonal {155mm*88mm}
-Type High resolution true-color graphic LED
-Resolution 480X234
ECG
ECG lead:I, II, III, AVR, AVL, AVF,V1~V6, GND
S-T segment analysis: -2.0~2.0mv
Arrhythmia analysis: yes
Protection: With stand 4000vAc/50Hzvoltage in isolation and work against electrosurgical knife and defibrillation
Respiration
Measurement method: Thoracic impedance
Standardparameter & configuration
ECG/RESP/DEFIBRILLATOR
Optionalparameter
Recorder
