Standard Supply:
830,000 pixels SONY camera, LED light resource, DELL Computer, 19" LCD Display,HP Color printer, high frequency video gathering card, Fluorescent device and probe, footswitch, Trolley, software and other accessories
Product Discription:

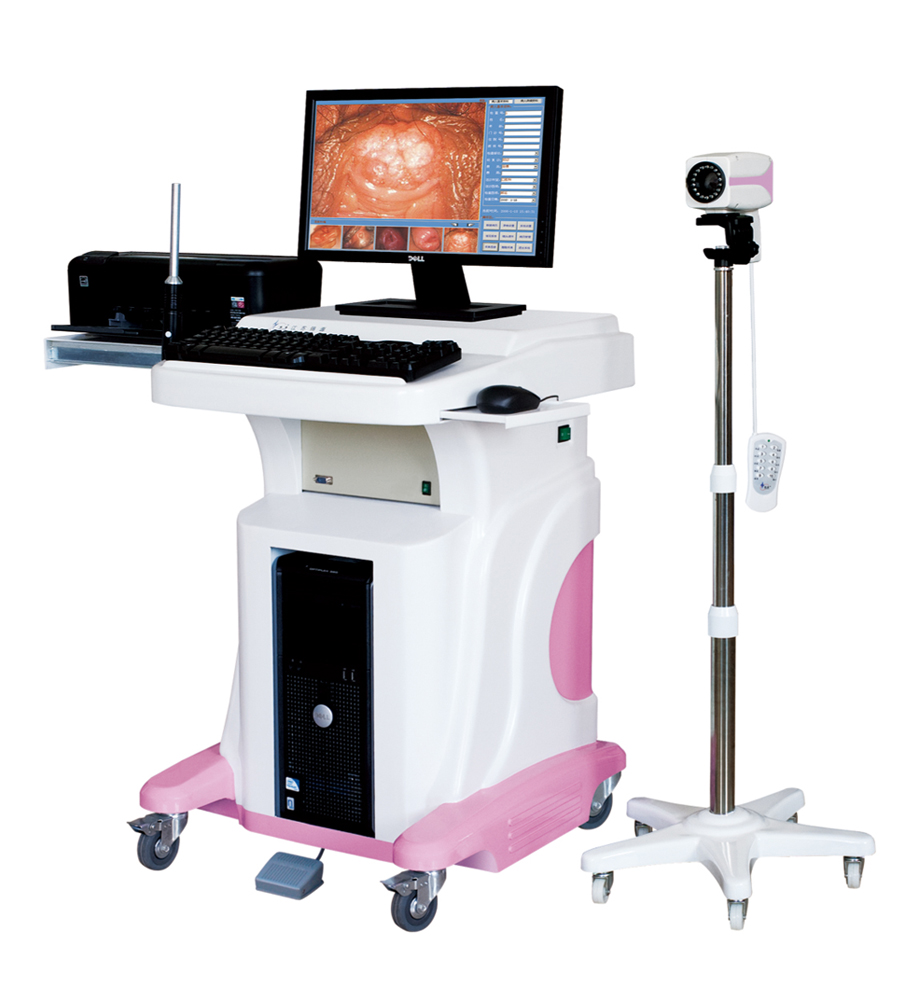

JY-2650 Video Colposcope is a high-technology product that applies electronic imaging technology to gynecological examination. Compared with traditional colposcope examination, it abolished ocular, broke through the limitations of optical colposcope and enables doctors to identify tiny focus on the computer screen.
Clinical Applications:
Vaginalitis, cervical ectropio, cervicitis, especially examining in the early diagnosis of uterus cancer.
Characteristic:
* Image display the whole examination process, dynamically capture true color images.
* Process images such as measure length, perimeter and area and label the image, etc.
* Store patients information, fast and conveniently query the information.
* Observe images by contrast under white light and green light settings.
* Manifold report modes, print report with both picture and text.
* Control Acetic-Acid reaction by key-press or time in iodine staining test
* Mobile controller, easy to operate without tremble Wireless Bluetooth function is for option
* Function of inherent fluorescence diagnosing.
* Can capture images with fluorescence; Compare images with white light and that with fluorescence on the same screen, which is convenient for diagnosing.
* Print pictures with fluorescence.
* Process images with fluorescence to improve diagnosis level.
Lens definition | 1/4 inch digital color CCD, 830, 000 pixels |
Resolution | ≥ 600 lines |
The lens focusing distance | 35mm- 1000mm |
Magnification | Optical magnification 1-28X, Digital magnification 1-12X |
Depth of field | 5mm-200mm |
Field of vision | Φ 10mm~60mm |
Minimum illumination | 0.01 Lux |
Signal-to-noise | ≥ 52 dB |
Color Temperature | ≥ 5000K |
Image output port | S-Video, Video, PAL, NTSC |
Focalizing manner | Fast auto focus or manual focus |
Lens white balance | Auto adjusting or manual adjusting |
Upright lens bracket | Adjustable length is 35cm to 95cm |
Image capturing manner | Foot switch or mouse |
Printing manner | Support common copy paper, printing paper and advanced photo paper |
Image storage capacity | More than one million images |
Technical Specification:
Lens definition: 1/4 inch digital color CCD, 830, 000 pixels
Resolution: ≥ 600 lines
The lens focusing distance: 35mm- 1000mm
Magnification: Optical magnification 1-28X, Digital magnification 1-12X
Depth of field: 5mm-200mm
Field of vision: Φ 10mm~60mm
Minimum illumination: 0.01 Lux
Signal-to-noise: ≥ 52 dB
Color Temperature: ≥ 5000K
Image output port: S-Video, Video, PAL, NTSC
Focalizing manner: Fast auto focus or manual focus
Lens white balance: Auto adjusting or manual adjusting
Upright lens bracket: Adjustable length is 35cm to 95cm
Image capturing manner: Foot switch or mouse
Printing manner: Support common copy paper, printing paper and advanced photo paper
Image storage capacity: More than one million images
Data interchange interface: CD driver, outlay USB equipment, support CD-RW/MO
High quality picture recording: Recording time could be adjusted according to your need and the recorded images are in high definition
