1, Use

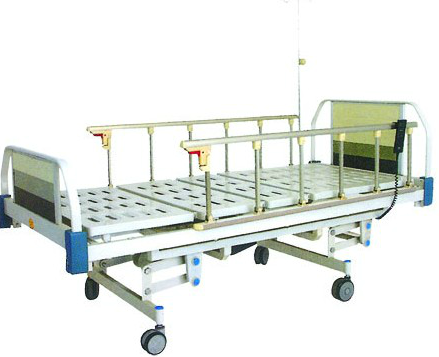

Electrical Nursing Bed is designed for healing, diagnosis and treatment.
2, Main characteristic:
1, Both ends of beds are made of ABS materials and detachable.
2, The main body is made of sprayed high-quality carbon steel.
3, Equipped with central-controlled φ 125mm castors, stable; To reduce friction with ground, easy to move.
4, Cold-rolled steel plate is used in the tabletop.
5, It used high-quality electric-vat, look nice, save electricity, lower noise, waterproof, long life-span.
3, Main Structure
The product is composed of the mechanism and the electric control system.
The rotation and movement of back-care bed frame, legs frame and its raising and lowing of electric nursing bed are driven to the various adjustable positions by motor, if necessary, can be adjusted at your choice.
4, Technical Parameters:
Supply: AC 220V± 10%, 50Hz
Length...2050mm
Width...900mm
Min Height...430mm
Max Height...680mm
Adjust...190mm
Back Section Raised from the horizontal...≥ 60°
Leg Section Raised from the horizontal...≥ 30°
Security Load...1750N
