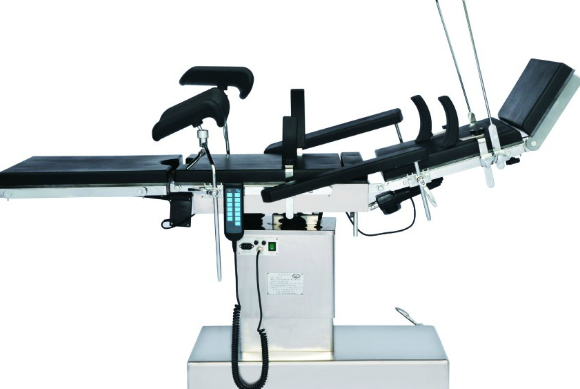

1, Main Usage & Structure:
Electric operating table is suitable for surgical procedures of the head, neck, thorax, abdomen perineum and extremities as well as for gynaecological, obstetrical, urological, otorhino laryngological and orthopaedics operations. It's raising, lowering, lateral tilt, reversed trendelenburg and trendelenburg, the up-down folding of the back section are all conducted electrically and controlled by buttons.
2, Specifications:
Dimension of table top:
Overall Length...…2100mm
Width...…480mm
Dimension of section:
Head Section...…280× 325mm
Back Section...…500× 480mm
Seat section...… 530× 480mm
Leg Section...… 510× 236mm
Foot Section...… 180× 273mm
Kidney Bridge...…100× 480mm
Table top of from floor:
Max Height...1000mm
Min Height...750mm
Range of movements:
Reversed Tendelenburg...≥ 200
Trendelenburg…...…≥ 150
Lateral tilt...…≥ 150
Adjustment of sections:
Head Section Raised from the horizontal...… ≥ 450
Head Section lowered from the horizontal...…≥ 900
Leg Section Lowered from the horizontal...…≥ 900
Leg Section opened...…≥ 900
Back Section Raised from the horizontal...≥ 450
Back Section lowered from the horizontal...…≥ 150
Kidney Bridge Elevated...…≥ 100mm
Safe Working Load...250kg
Lifting speed...4~16mm/s
Foot and leg board board into a horizontal or vertical.
IPX4 Ingress Protection: IPX4
Power: AC220V, 50Hz
Internal electric source: (DC)24V
Battery capacity ≥ 2.4AH Device safety sort I B
Length:2100mm
Width: 480mm
Max Height:1000mm
Min Height:750mm
