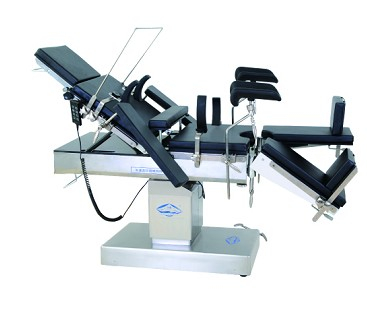

(Main Usage & Structure)Main Usage: Electric operating table can be operated for clinical use.
B) Structure: Operating table consists of two parts: Mechanical and electro-hydraulic control system. Depending on manual operation, the product can meet the requirement of posture in clinical operation.
,: Specifications
: Dimension of table top:
Overall Length......2100mm
Width.........500mm
: Dimension of section:
Head Section...250× 500mm
Back Section...545× 500mm
Seat section...450× 500mm
Leg Section...600× 240mm
Kidney Bridge...75× 500mm
Foot Section...180× 273mm
: Table top of from floor
Min Height...750mm
Max Height...1000mm
Adujst...250mm
: Range of movements:
Reversed Trendelenburg...≥ 20°
Trendelenburg...≥ 15°
Lateral Tilt...≥ 15°
Backward and Forward Movements...≥ 400mm
: Adjustment of sections:
Head Section Raised from the horizontal...≥ 45°
Head Section lowered from the horizonta...≥ 90°
Back Section Raised from the horizontal...≥ 45°
Kidney Bridge Elevated...≥ 80mm
Leg Section Lowered from the horizontal...≥ 90°
Leg section opened...≥ 90°
Safe working load...135kg
Lifting speed...4~16mm/s
. Foot and leg board board into a horizontal or vertical.
I B Device safety sort I B
: IPX4 Ingress Protection: IPX4
: (AC)220V, 50Hz Power: (AC)220V, 50Hz
: (DC)24V Internal electric source: (DC)24V
≥ 2.4AH Battery capacity ≥ 2.4AH
