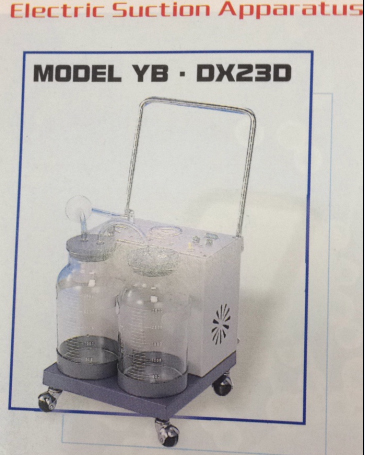

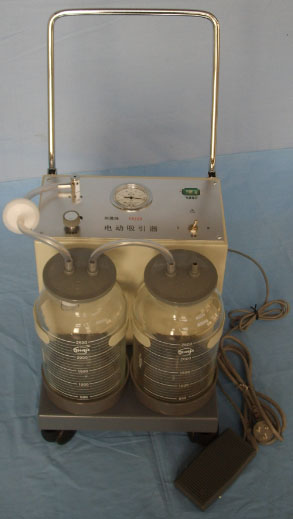

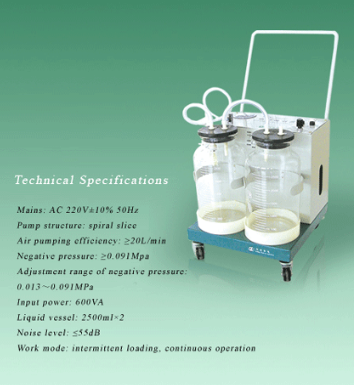

Model YB·DX23D Electric Suction Apparatus is a high performance suction pump, designed to satisfy the demand for surgical procedures requiring fast suction and large collection capacity, It has a compact construction specialized for minimal space requirement and easy transportation between facilities. I.Features 1. Efficient single rotor vacuum pump with oil impregnated vanes capable of producing a vacuum higher than 0.09MPa(680mmHg).and a suction flow more than 20 L/min. 2. Double 2500ml glass collection bottles to collect the sucked liquid, each of them calibrated in 100ml steps up. 3. Adjuster knob to regulate the precision vacuum gauge . 4. No difficulty near or remote control as both hand-switch and foot-switch installed in parallel. 5. Stability and durability. The unit is assured of long trouble free service. II.Specifications 1. Max Vacuum:≥0.09MPa(680mmHg) 2. Flow rate:≥20L/min 3. Storage bottles:2500ml×2 4. Power supply:AC220V 50Hz 5. Input:280VA 6. Dimemsion:380mm×370mm×480mm 7.G.W./N.W.:18.5/17kg
