FC-1 Multi-Purpose Gynecological Table A01.02008
You are here: Home » Products » Operation Room Product » Parturition Bed » FC-1 Multi-Purpose Gynecological Table A01.02008

Product Category

Contact Person

Name: Xu Yong
Tel: 13505148410
Email1: xuyong@everichmed.com
Email2: juliet@everichmed.com

loading

Share to:
sharethis sharing button

FC-1 Multi-Purpose Gynecological Table A01.02008

Quantity:
  • FC-1

  • Electric Bed

  • Hospital

  • CE, ISO9001

  • Electric

  • 600mm to 900mm(From Floor to Seat Section)

  • 1 Set

  • 2 PCS

  • 220V± 22V, 50Hz± 1Hz

  • everich

  • China

  • Metal

  • Folded

  • Without

  • New

  • 1230*550mm (with Back Section in Lever Position)

  • 1 Pec

  • 1 Pec

  • 1 Pec

  • 150va

  • CE, ISO

  • 9402900000

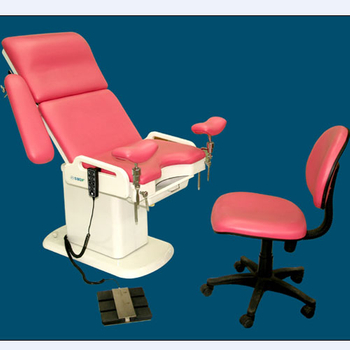

FC-1 Gynecological Inspection Bed is a brand-new multifunctional device, intended for use in gynecological diagnosis and normal operation. With its full functions, the new FC-1 is the best choice for gynecological equipment.


Features
Full-electric control the position. Three import motors can control the elevation of the table broad, the slope of the buttocks section and the fluctuation of the back section to make patients comfort and security. Only use the press-button director.
Hand-director and Leg-director in every inspection bed can control all the position to provide for convenience.
Somatological design and superior materials suitable for cleaning and sterilization.
Sterilized toilet paper in bed can keep table cleaning.
Truckle in the foundation, easy to inspect the bed's movement, and lockable. Equipped with chair for doctor easy for operation by doctor.


Main Specification
Total length: 1230×550mm (with back section in lever position)
Height: 600mm to 900mm(from floor to seat section)
Back section adjustment: upwards 0° to 60°
Buttocks section adjustment: upwards 0°to 15°, downwards 0°to 8°




 Accessories
Armrest            1 pec
 Leg support    1 set
Waste pan      1 pec
Controller        2 pcs
Chair               1 pec


Intended use:
FC-1 multipurpose Gynecological Table is an utmost examination table, designed to use at gynecological examination and diagnosis, and small operation as well. With its functions and economy FC-1 is an ideal substitution for a modern gynecological department.

Special fetures:
1. A special selected motor, which is adopted to control the elevation of table, makes the atble more stableand reliable, smooth and noiseless.
2. The back of the table is cintrolled via pneumatic elements thus the desired positoin can be achieved by slightly pushing the handle bar.
3. A footswitch provides the doctor with most convenience for operation.
4. The furnished accessory includes Knee Rest, Gripping Bar, and Collection Bucket making the table applicable and easy to operte.
5. The mattress is shaped with a ergonomics philosophy and modern art, and composed of with superior materrials suitable for cleaning and sterilization.

Main specifications:
1. Total length: 1200*500(with back section in levelposition)
2. Height: 700 to 950(from floor to seat section)
3. Back section adjustment: Upwards 0° To 60°
4. Trendelenburg adjustment: ≥ 8°
Antitrendelenbug adjustment: ≥ 15°
5. Power supply: 220V± 22V, 50Hz± 1Hz
6. Power consumption: 150VA
Total length 1230×550mm (with back section in lever position)
Height 600mm ~ 900mm(from floor to seat section)
Back section adjustment upwards 0° to 60°
Buttocks section adjustment upwards 0°to 15°, downwards 0°to 8°
Power supply 220V± 22V, 50Hz± 1Hz
Power consumption 150VA
Accessories Armrest            1 pec
 Leg support    1 set
Waste pan      1 pec
Controller        2 pcs
Chair               1 pec
