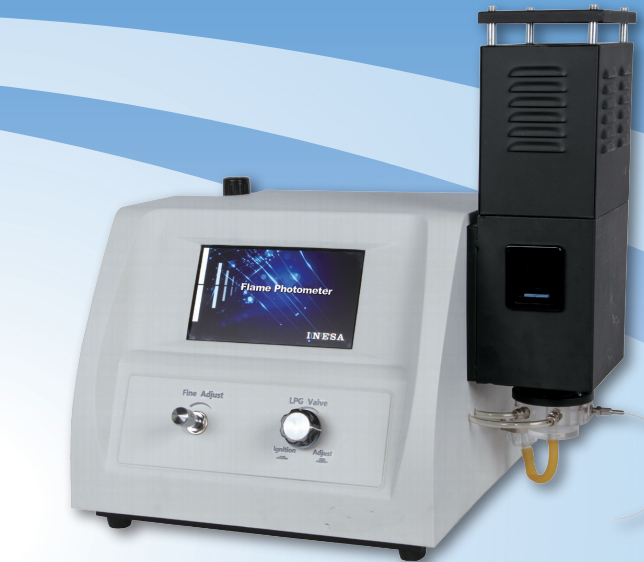

Flame Photometer
Flame Photometer
7 inch touch screen LCD Direct concentration read-out
Automatic Calculation of correlation coefficient Pre-selection of flame sizes
Flameout protection device Measuring range changing
LPG burning gas Air compressor including
SPECIFICATIONS
FP640 FP6410 FP6430 FP6431 FP6432 FP6440 FP6450
K 0.01ppm 0.01ppm 0.01ppm
Na 0.01ppm 0.01ppm 0.01ppm
Sensitivity Li optional 0.1ppm 0.1ppm
Ca 2ppm 2ppm
Ba 6ppm 6ppm
K 0-100ppm 0-100ppm 0-100ppm
Na 0-160ppm 0-160ppm 0-160ppm
Range Li optional 0-100ppm 0-100ppm
Ca 0-1000ppm 0-1000ppm
Ba 0-3000ppm 0-3000ppm
K 0.195ppm (0.39-3.12)ppm 0.195ppm (0.39-3.12)ppm 00.195ppm (0.39-3.12)ppm
Na 0.69ppm (1.15-9.2)ppm 0.69ppm (1.15-9.2)ppm 0.69ppm (1.15-9.2)ppm
Linearity Li optional 0.15ppm (0.25-5)ppm 0.15ppm (0.25-5)ppm
Ca 3ppm (5-100)ppm 3ppm (5-100)ppm
Ba 9ppm 9ppm
Repeatability 1 % CV for 20 consecutive samples 1 % CV for 20 consecutive samples 1 %CV for 20 consecutive samples
Respond time <8s <8s <8s
Sample uptake <6L/min <6L/min <6L/min
Package G.W. 17kg 570x530x380mm 0.115M3
