High Performance Ophthalmic Handheld Portable Silt Lamp

Quantity:
Inquire Add to Basket

  • SLM-6L

  • Silt Lamp

  • All People

  • 0~12mm Continuous

  • 12mm

  • More Than 30000lux

  • 169.5mm*109.5mm*228.5mm

  • 90185000

  • Biological Diagnostics

  • CE, ISO13485

  • D.C.3V

  • 12mm

  • White LED

  • Everich

  • China

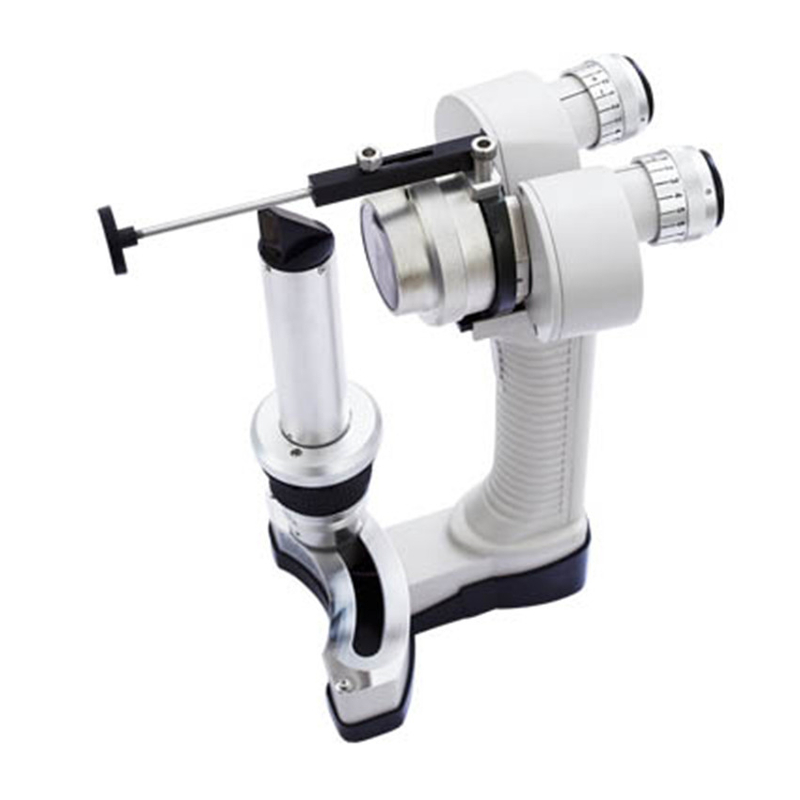

Portable Slit Lamp SLM-6L
1 magnification (10x)
With 10X eyepieces
with Li-ion Battery, Battery Charger
With metal box
With focus stick, Forehead Bracket
Portable Slit Lamp utilizes a high luminance white LED (Light Emitting Diode) light source
Coupled with a lightweight, compact design, to give you the freedom of using a slit lamp in the palm of your hand
The kanghua's portable slit lamp weighs only about 0.7kg with its battery and fits easily and comfortably in your hand.
Its ergonomic, portable design and convenient carrying case make it an ideal instrument for non-ambulatory patients, nursing home visits, and veterinary work.
High luminance light source provides about30000 lux of white light and has a life span of 50,000 hours or more; providing bright, consistent light.
 Portable Slit Lamp comes with two long-lasting batteries that can power the instrument at maximum illumination for up to five to six hours.
Portable slit lamp also comes with its own battery charger, allowing you to charge the batteries as necessary

Modle
(Item)		 SLM-6L

Microscope		 type  Angle stereo type
eyepiece type  High eye point eyepiece
Field center for resolution ≥1800·N/mm(N=0.06)

Nominal diameter field of view		 10X:10mm;16X:6mm;25.6X:4mm
Object lens 1.0X
eyepiece 10X
Total magnification 10X

Working distance		 81mm
IPD adjustment range 45mm~72mm
Diopter adjustment -8D~+8D

Illumination		 Slit width 0~12mm(continuous)
Slit height 12mm
Light bar diameter 12mm
Filter Heat filter, light-reducing filter, red filter and cobalt filter
Lamp LED (white LED)
Illumination 30000lux(more than)

Power		 LED
working voltage		 d.c.3V
Battery Li-ion d.c.7.4V/680mAh(continuous to 5-6 hours)
