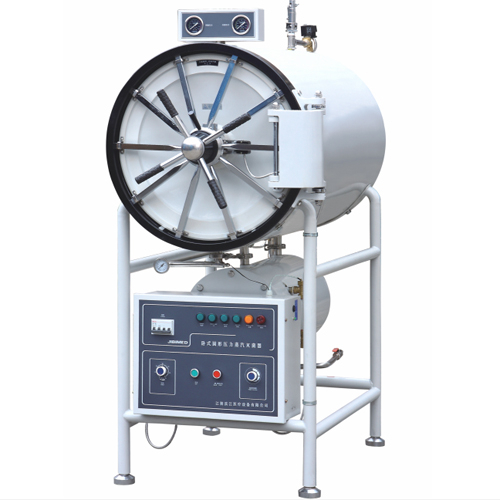

Horizontal Cylindrical Pressure Steam Sterilizer (WS-500YDA)

Quantity:
  • WS-90YDA 150YDA 200YDA 280YDA 400YDA 500YDA
  • Pressure Steam Sterilization Equipments
  • 380V
  • Ultra High Temperature Alarm
  • Stainless Steel
  • Suzz20132570313
  • 134oc
  • 0-60 Min
  • <=+/-1oc
  • Steam Be Exhausting to The Water Tank
  • CE, ISO
  • 84192000
  • Pressure Steam
  • CE, ISO13485, ISO9001
  • Without LCD Display
  • Sterilization Information Recording and Printing
  • Type 3
  • 0.22MPa
  • 105oc - 134oc
  • 0-60 Min
  • Open Automatically
  • everich
  • China

Characteristics:
1. Sterilizing course automatic sterilization controlled,easy to operate.
2. With drying function,suitable dressing drying.
3. With over-temperature,over-pressure auto-protect device.
4. The door opening mechanism cannot be operated until the pressure in the chamber is reduced to 0.027MPa.It
can't be start on if the door doesn't close well.
5.The safety value will be open automatically when the inner pressure over 0.24MPa,and the steam be exhausting to the water tank.
6. The power will be cut-off automatically,cut-off the water and alarm when the machine lacking water.
7. The chamber of the sterilizer is made of stainless steel.

Technical data:

Technical data
 WS-90YDA   WS-150YDA WS-200YDA WS-280YDA  WS-400YDA  WS-500YDA
Sterilizing chamber
volume

90L
φ440×700mm

150L
φ
440×1000mm

200L
φ
515×1000mm

280L
φ600×1000mm

400L
Φ700×1100mm

500L
Φ700×1300mm
working pressure                                                                                0.22MPa
working temperature                                                                                  134ºC
Adjustment of
temperature

                                                                              105ºC - 134ºC
Time of sterilization                                                                               0-60 min
Time of drying                                                                               0-60 min
Heat average                                                                                 â‰¤±1ºC
Power 9KW/380V 50Hz 9KW/380V 50Hz 9KW/380V 50Hz 12KW/380V 50Hz 12KW/380V 50Hz 18KW/380V 50Hz
Dimension
1100×
600×1300

1400×
600×1300

1400×
670×1650

1400×
770×1780

1430×
880×1830

1800×
900×1820

Transport dimension

1250×
750×1850

1550×
750×1850

1560×
820×1850

1680×
920×2100

1800×
1050×2100

1850×
1050×2100

G.W/N.W
270/200 KG 320/240 KG 350/260 KG  465/365 KG 530/520 KG  580/470 KG
