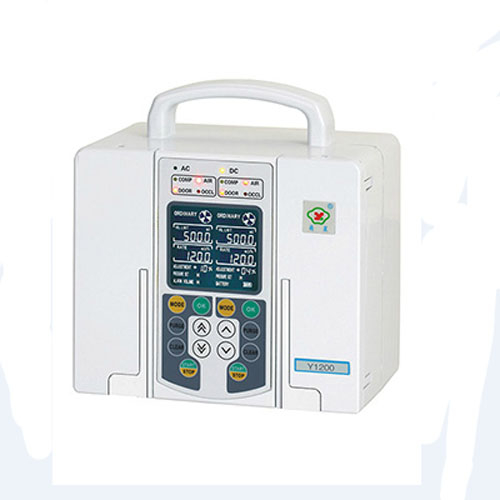

Infusion Pump in Hospital (Model: ZNB-XB-Y1200)
You are here: Home » Products » Hospital Equipment » Infusion Pump in Hospital (Model: ZNB-XB-Y1200)
Share to:

Infusion Pump in Hospital (Model: ZNB-XB-Y1200)

Quantity:
  • ZNB-XB-Y1200
  • CE, ISO13485
  • With LCD Display
  • 0.1ml/H-600ml/H
  • 250~500 Seconds
  • 220V±22V; 50Hz±1Hz
  • 30va
  • 185×115×196(Mm)
  • CE, ISO
  • 90189090
  • Infusion Pump
  • All People
  • 0.1ml/H-1200ml/H
  • with 0.1-30ml/H (0.1ml/Step); Over 30ml/(1ml/Step
  • 7~14 Seconds
  • 30va
  • 20%-90%
  • everich
  • China
Technical parameters:
Power supply A C: 220V±22V; 50Hz±1Hz;
D C: 12V (built-in battery)
Fuse F0.75AL(socket back), T1A (switching power supply L.N)
Power consumption 30VA
Built-in battery work time 30VA
Environmental temperature +5ºC-+40ºC
Relative humidity 20%-90%
Product dimension 185×115×196(mm)
weight 3.8kg
Low speed(1ml/h) 250~500 seconds

Infusion flow rate
Specialized infusion apparatus:0.1ml/h-1200ml/h;
Ordinary infusion apparatus:0.1ml/h-600ml/h;
Remarks: with 0.1-30ml/h (0.1ml/step); over 30ml/(1ml/step).
Infusion accuracy error
Specialized infusion apparatus:±5%(medium speed, 23ºC, humidity: 60%);
Specialized infusion apparatus:±5%(medium speed, 23ºC, humidity: 60%);
Total infusion volume preset: 0.1-9999ml.
Remarks: with 0.1-30ml/h (0.1ml/step); over 30ml/(1ml/step).
Occlusion sensitivity: It has three adjustable levels of occlusion pressure as high, medium and low.
Low speed(1ml/h):250~500 seconds;
Medium speed (120ml/h):7~14 seconds;
Above data is measured at the status of 25ºC ambient temperature, ordinary pressure, use ordinary PVC(∮3)infusion apparatus and high sensitivity.
KV0: 1-2ml/h.
Power supply:
A C: 220V±22V; 50Hz±1Hz;
D C: 12V (built-in battery).
Fuse: F0.75AL(socket back), T1A (switching power supply L.N).
Power consumption: 30VA.
Built-in battery work time: 30VA.
Under the sufficient battery, medium speed flow rate, the battery can continuous work about 2 hours after power is switched off. Run time is related to flow rate. Within the battery normal life, the run time should not be less than 2 hours. The battery could charge and discharge about 400 times.
working condition:
Environmental temperature:+5ºC-+40ºC;
Relative humidity: 20%-90%;
Product dimension and weight:185×115×196(mm), 3.8kg.
security classification:
The equipment is conform to IEC60601-1-2 standard and can resist a certain electromagnetic interference, which is no electromagnetic interference to other devices. However, please keep the infusion pump away from strong electromagnetic equipment, for example: radio knife, MRI.
