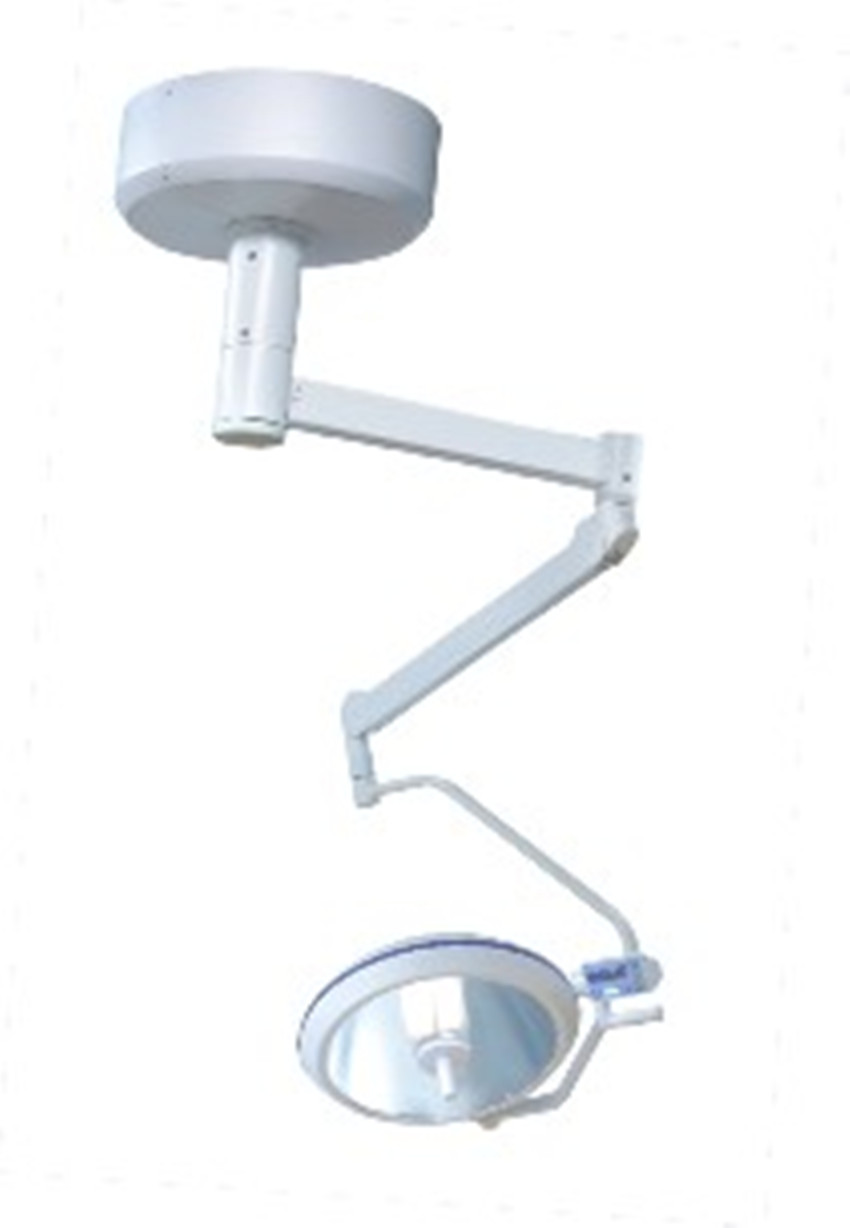

Integral Reflection Shadowless Operating Lamp (L5)
You are here: Home » Products » Operation Room Product » Anesthesia Machine, Operating Light » Integral Reflection Shadowless Operating Lamp (L5)
Share to:

Integral Reflection Shadowless Operating Lamp (L5)

  • L5
  • Shadowless
  • All People
  • Single Operating Light
  • 120W
  • ≥1100mm
  • 520mm
  • 4300±250k
  • ~220V,50Hz;~110V,60Hz
  • CE, ISO
  • 85393910
  • Operating Light
  • CE, ISO13485
  • With LCD Display
  • 8,0000~16,0000lux
  • ≥800h
  • 120-250mm
  • 1352m⊃2;
  • Ra≥93
  • everich
  • China

 Installation requirements:
1.The basement should support a burden of 500Kg.If the height of the ceiling is more than 3.2m,one extension rack should be added(it can be specially made by us)
2.The ground lead of the user should be connected with the groud lead terminal of the product.(The kelly line at the base)
3.Please contact with the company for any special requirements in installation.Meanwhile,we take the job for installation.

Main technical parameters:
Illumination intensity(max.) 8,0000~16,0000lux
Adjustment range of illumination intensity 100%-50%
Power of bulb 120W
Service life of bulb ≥800h
Depth of focus ≥1100mm
Diameter of luminous spot 120-250mm
Dia.of lamp disc 520mm
Effective area 1352m⊃2;
Color temperature 4300±250K
CRI Ra≥93
Ir ratio of absorption 99%
Mains voltage ~220V,50Hz;~110V,60Hz
Rated voltage of bulb 24V
The lowest height for lnstal lation 2800mm
Executive standard IEC60601-2-41:2000


Type Parts Package dimension Gross weight Net weight Packing
L5 Lamp head 79×79×32.5(cm) 28(Kg) 10.5(Kg) plywood box
Swivel ling arm 160×51.5×47.5(cm) 66(Kg) 39(Kg) plywood box
