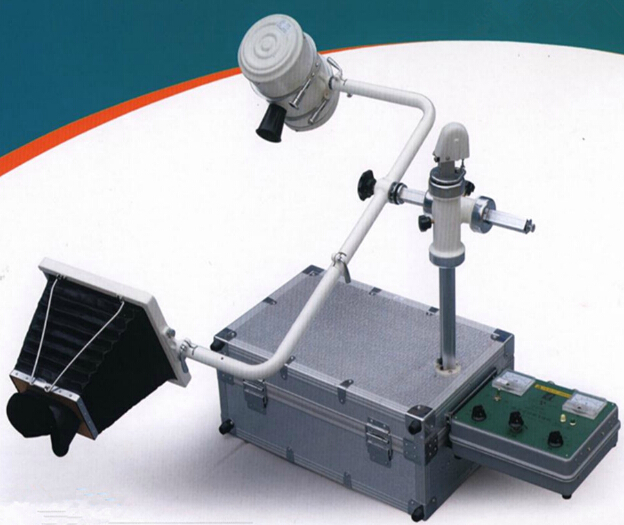

Jf-10 Portable X-ray Unit (model JF-10)

Quantity:
Inquire Add to Basket

  • JF-10

  • Dental

  • All People

  • AC220V± 10%

  • 75kvp 10mA 6sec

  • 220mm

  • 25kg

  • AC220V, 50Hz, 1kVA

  • everich

  • China

  • X-ray Machine

  • CE

  • With LCD Display

  • 50Hz

  • 75kvp 3-5mA (Uncontinous Use)

  • 130mm

  • 50X31X18cm

  • 203mm*254mm

  • CE, ISO

  • 90222100

Features
The unit is shock-proof, single-focus and self-rectified X-ray unit. It applies to medical fluoroscopy and radiography on mouth, carity bone, heart ,skull as well as contraceotive ring.

Specifications
Maximum rating:
For fluoroscopy:75kVp 3-5mA(uncontinuous use)
For radiography:75-kVp 10mA 6sec, (interval time 3 minutes) (Routune fluoroscopy condition:65kVp 3mA)
Power supply: AC220V, 50Hz, 1kVA
Curerent: for fluoroscopy 2A(uncontinuous)
                  for radiography 6A(instantaneous)
Size of Screen: 203mm*254mm
Range of movement: up-down:220mm, left-right:130mm
tube tuming angel: vertical360(degree), horizontal320(degree)
Volume: 50cm*31cm*18cm
Weight: 25Kg

Name Portable X-ray Unit
Model JF-10
For fluoroscopy 75kVp 3-5mA(uncontinuous use)
For radiography 75-kVp 10mA 6sec, (interval time 3 minutes) (Routune fluoroscopy condition:65kVp 3mA)
Power supply AC220V, 50Hz, 1kVA
Curerent for fluoroscopy 2A(uncontinuous)
for radiography 6A(instantaneous)
Size of Screen 203mm*254mm
Range of movement up-down:220mm, left-right:130mm
Volume 50cm*31cm*18cm
Weight 25Kg
