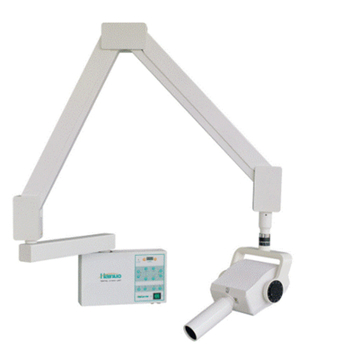

Jyf-10b Dental X-ray Unit (model: JYF-10B)

  • JYF-10B

  • Dental

  • All People

  • 2.5mmal

  • 35kg

  • 1.5mm

  • Outsidew One Meter<=0.002mgy/H

  • everich

  • China

  • X-ray Machine

  • CE, ISO13485

  • 220V,50Hz

  • 0.2 to 4 Sec

  • 8mA

  • Electromedical, Class1, Type B

  • 60kvp

  • CE, ISO

  • 90189090

The microprocessor-controlled timer brings high-tech X-ray imaging at your fingertips.
The control panel allows an accurate and fast exposure time selection while protecring the head during X-ray examinations.
Fitted with 70KV 8mA tube with preheating grid.The machine has been specially designed for intraoral dental diagnosis applications.
Complies with lical and intermational regulations on ionizing radiation protection for maximum safety.
The soft positioner arm ensures naturally smooth and well-nbalanced movements.It is easy installed at the desires height and length.
Its ergonomics and design have been studied to meet the equipments of the most semanding practices in matters of floor space optimization.
Advanced x-ray technology, microprocessor-controlled.
Touched button, wall mount, clear imaging, low radiation,
High effciency, easy oprration and space

Power supply  AC220v± 10%, 50Hz, 1kva
Tube voltage 60kVp
Tube current 8mA
Focus size 1.5mm
Total filtration 2.5mmAL
Exposure tion  0.2-4sec
Leak radiation Outsidew one meter≤ 0.002mGy/h
Optional Tube current 10mA, 0.5mA
focus size 0.8mm
Classification Electromedical, Class1, Type B
Total weight 35kg

Power supply: AC220v± 10%, 50Hz, 1kva
Tube voltage: 60kVp
Tube current: 8mA
Focus size: 1.5mm
Total filtration: 2.5mmAL
Exposure tion: 0.2-4sec
Leak radiation: Outsidew one meter≤ 0.002mGy/h
(national standard: 0.25mGy/h)
Optional: Tube current:10mA, 0.5mA focus size: 0.8mm
Classification: Electromedical, Class1, Type B
Total weight: 35Kg
