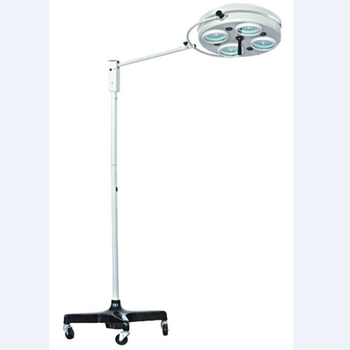

L734 Ordinary Operating Light (model L734)
You are here: Home » Products » Operation Room Product » Anesthesia Machine, Operating Light » L734 Ordinary Operating Light (model L734)
Share to:

L734 Ordinary Operating Light (model L734)

Quantity:
  • L734
  • Ordinary Operating Light
  • All People
  • Without
  • ≥40000lx
  • Ra≥85
  • 24V
  • 113×68×35(Cm)
  • 35(Kg)
  • everich
  • China
  • Operating Light
  • CE, ISO13485
  • With LCD Display
  • Single Operating Light
  • 4000±500k
  • ~220V,50Hz;~110V,60Hz
  • 25W
  • 55(Kg)
  • Plywood Box
  • CE, ISO
  • 85393910

 Installation requirements:
1.The basement should support a burden of 500Kg.If the height of the ceiling is more than 3.2m,one extension rack should be added(it can be specially made by us)
2.The ground lead of the user should be connected with the groud lead terminal of the product.(The kelly line at the base)
3.Please contact with the company for any special requirements in installation.Meanwhile,we take the job for installation.

Main technical parameters:
Illuminance: ≥40000Lx
Color temperature: 4000±500K
Mains voltage: ~220V,50Hz;~110V,60Hz
Rated voltage of bulb:24V
Rated power of bulb: 25W
Package dimension:113×68×35(cm)
Gross weight: 55(Kg)
Net weight: 35(Kg)
Packing: Plywood box
Main technical parameters:
Illuminance ≥40000Lx
Color temperature 4000±500K
Color rendering index Ra≥85
Mains voltage ~220V,50Hz;~110V,60Hz
Rated voltage of bulb 24V
Rated power of bulb 25W
Packaging:
Type Package dimension Gross weight Net weight Packing
L734 113×68×35(cm) 55(Kg) 35(Kg) Plywood box
