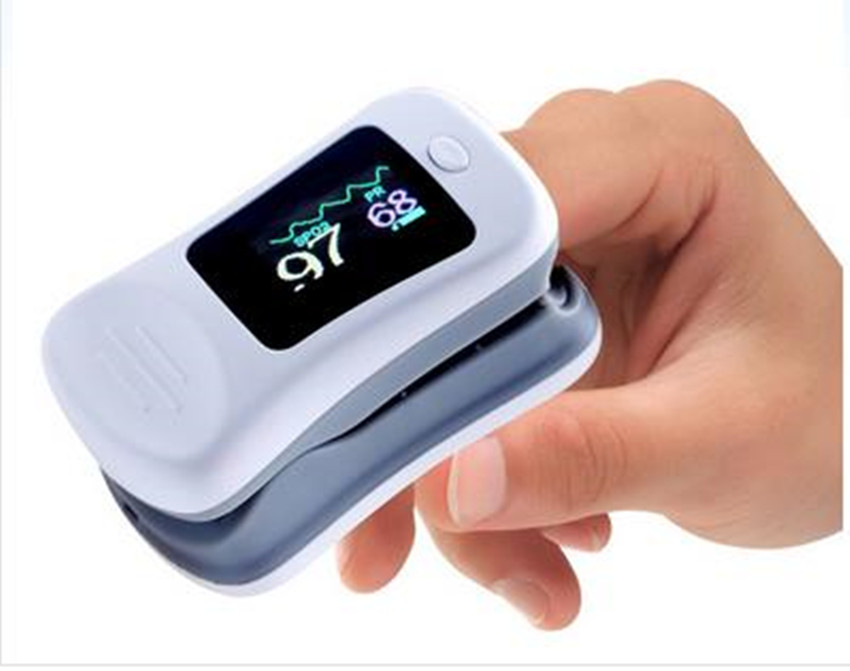

PM-500B
Pulse Oximeter
Adult, Pediatric, Infant, and Neonate
-20°c~60°c
LCD
50g(Include Batteries)
CE, ISO
90181930
Imaging Diagnostic Equipment
CE
0 ~ 45 °c
30 ~ 250bpm
63(H)Mm×34(W)Mm×33(D)Mm
everich
China
Oxygen Saturation(SPO2) |
Measurement range: 35% ~ 100% Accuracy:70%~100%,±2% 0%~69%,unspecified Resolution: 1% |
Pulse Rate |
Measurement range: 30bpm~250bpm Accuracy: ±2bpm Resolution: 1bpm |
Display Mode |
SPO2 display: 2 segment in percentage and waveform PR display: 2 character E Display of pulse strength Indicator for low battery capacity |
Power Requirements |
Battery type: Two AAA (1.5V) alkaline or rechargeable battery |
Environment Requirements |
Temperature Operation:0ºC~40ºC Transportation and storage:-20ºC~60ºC Humidity Operation: 15%~95% (non-condensing) Transportation and storage: 10% ~ 95% (non-condensing) Atmospheric pressure Operation: 86kPa~106kPa Transportation and storage: 50kPa~106kPa |
Dimension |
63(H)mm×34(W)mm×33(D)mm |
Net weight |
50g(include batteries) |
Oxygen Saturation(SPO2) |
Measurement range: 35% ~ 100% Accuracy:70%~100%,±2% 0%~69%,unspecified Resolution: 1% |
Pulse Rate |
Measurement range: 30bpm~250bpm Accuracy: ±2bpm Resolution: 1bpm |
Display Mode |
SPO2 display: 2 segment in percentage and waveform PR display: 2 character E Display of pulse strength Indicator for low battery capacity |
Power Requirements |
Battery type: Two AAA (1.5V) alkaline or rechargeable battery |
Environment Requirements |
Temperature Operation:0ºC~40ºC Transportation and storage:-20ºC~60ºC Humidity Operation: 15%~95% (non-condensing) Transportation and storage: 10% ~ 95% (non-condensing) Atmospheric pressure Operation: 86kPa~106kPa Transportation and storage: 50kPa~106kPa |
Dimension |
63(H)mm×34(W)mm×33(D)mm |
Net weight |
50g(include batteries) |
