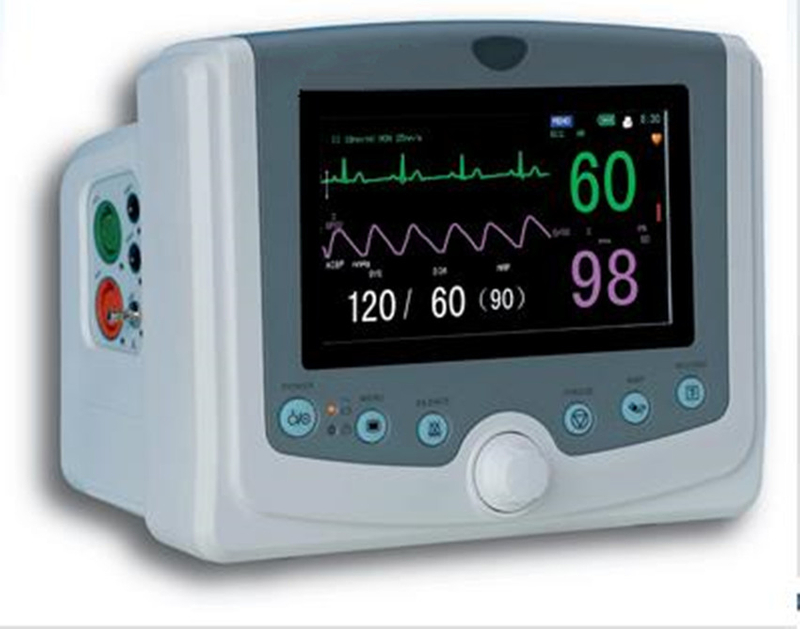

Features:
7 inch high resolution (800x600) colorful TFT LCD
Simultaneous display of 4 channel waveform on one screen
Dual NIBP with over pressure protection
Analysis of real time ST segment and arrhythmia
Standard configuration: ECG, NIBP, RESP, SPO2, 1-TEMP, PR, drug dose calculation, OXYCRG
Optional configuration: Built in thermal printer, 2-TEMP
Standard RJ-45 socket to support networking capacity of maximum 66 beds and compatibility with HIS
Digital SPO2 enables effective examination in case of active patient and low infusion as well
interference caused by electrosurgical unit
Compact and portable design allows uninterrupted operation with its built in rechargeable battery
Specifications:
| Size and Weight |
|
Name of the monitor |
Multi-parameter Monitor |
Size |
258mm×210mm×175mm |
Weight |
4.5Kg | |
System output |
|
Display type |
12.1″LCD color display screen, with a resolution of 800×600 |
Interface with central unit |
Network port | |
Power supply |
|
Power Voltage |
AC 100V~240V 50/60Hz |
Power Input |
≤70VA |
Fuse |
1.6A |
Safety Level |
Class I , Type CF | |
Battery |
|
Type |
Rechargeable Lead acid cell, 12V/3.2AH |
Charge time |
≤6 hours |
Working hours when charged fully |
≥30min when using normally | |
Environment |
|
Ambient Temperature |
Working 0~+40ºC
Transportation and storage -20~+50ºC |
Relative humidity |
Working ≤85%
Transportation and storage ≤93% |
Atmospheric pressure |
Working 860~1060 hPa
Transportation and storage 500~1060 hPa | |
ECG |
|
Lead Mode |
5-leads ECG input
3-leads ECG input |
Lead selection |
I, II, III, aVR, aVL, aVF, V-
I, II, III
I, II, III, aVR, aVL, aVF, V1~V6 |
Gain |
2.5mm/mV, 5mm/mV, 10mm/mV, 20mm/mV, 40mm/mV |
Input impedance |
≥5.0 Mohm(d.c. ~ 60 Hz) |
CMRR |
DIAG ≥85dB
MON ≥105dB
OPS ≥105dB |
Frequency response |
DIAG 0.05~75Hz
MON 0.5~25Hz
OPS 1~15Hz |
Electrode offset potential |
±300 mV d.c. → ±600mV d.c. |
Leakage Current |
<10 uA |
ECG signal range |
±6.0 mV |
Baseline recovery |
<5 s After Defi. (MON or OPS mode) |
Insulation |
Breakdown Voltage 4000VAC 50Hz/60Hz |
Indication of electrode separation |
Available |
Sweep speed |
12.5mm/s, 25mm/s, 50mm/s | |
HR Measuring and Alarm |
|
Range |
10~300 bpm |
Refreshing time |
Per pulse |
Resolution |
1 bpm |
Accuracy |
±1% or ±1 bpm, whichever is greater |
Alarm range |
10~300 bpm, continuously adjustable between high limit and low limit |
Alarm indication |
Sound and light alarming | |
NIBP |
|
Way of measurement |
Automatic oscillometry |
Range of measurement |
Adult |
SYS |
30~275 mmHg |
DIA |
10~255 mmHg |
MEAN |
20~255 mmHg |
Child |
SYS |
30~235 mmHg |
DIA |
10~160 mmHg |
MEAN |
20~170 mmHg |
Neonate |
SYS |
30~145 mmHg |
DIA |
10~120 mmHg |
MEAN |
20~140 mmHg |
Cuff pressure range |
0~280 mmHg |
Resolution |
1 mmHg |
Pressure Accuracy
Static
Clinical |
±2% or ±3 mmHg, whichever is greater
±5 mmHg average error
8 mmHg standard deviation |
Unit |
mmHg, kPa |
Pulse rate measuring range |
40 ~ 240 bpm |
Inflation time for cuff |
Less than 40 sec. (standard adult cuff) |
Total cycle time |
20 to 45 seconds typical (dependent on heart rate and motion artifact) |
Intervals for cycle measurement time |
1,2,3,4,5,10,15,20,30,45,60,90 minutes
2,4,8 hours |
Overpressure Protection
Adult
Child
Neonatal |
Hardware and software double protections
315±10 mmHg
255±10 mmHg
170±10 mmHg |
Range of alarm |
SYS |
0~300 mmHg, continuously adjustable between high limit and low limit |
DIA |
0~300 mmHg, continuously adjustable between high limit and low limit |
MEAN |
0~300 mmHg, continuously adjustable between high limit and low limit |
Alarm indication |
Sound and light alarming |
Ways of measurement |
Single, Cycle and Quick (Q.sys) | |
SpO2 |
|
Range of measurement |
0~100% |
Resolution |
1% |
Precision |
At 70~100%, ± 2%
At 35~69%, ± 3%
At 0~34%, unspecified |
Range of alarm |
0~100%, continuously adjustable between high limit and low limit |
Alarm indication |
Sound and light alarming |
Type of sensor |
Dual bandwidth light emitting diode |
PR:
Measuring and alarm Range
Resolution
Accuracy |
25~250 bpm
1 bpm
±2% or ±1 bpm, whichever is greater | |
| TEMP |
|
Range of measurement |
0.0~50.0ºC |
Resolution of display |
0.1ºC |
Unit |
Celsius (ºC), Fahrenheit (ºF) |
Precision |
±0.1ºC |
Connecting cable |
Compatible with YSI-4400 |
Range of alarm |
0.0~50.0ºC, continuously adjustable between high limit and low limit |
Alarm indication |
Sound and light alarming | |
RESP |
|
Method |
Impedance between RA-LL (R-F) |
Measuring impedance range |
0.5 ~3 Ohms |
Base line impedance range |
500~4000 Ohms (50~120 kHz exciting frequency) |
Range of measurement |
0~120 bpm |
Precision |
±2 bpm |
Gain |
x1,x2,x4 |
Range of alarm |
0~120 bpm, continuously adjustable between high limit and low limit |
Sweep speed |
6.25mm/s, 12.5mm/s, 25mm/s |
Asphyxia |
1~60s, off |
Alarm indication |
Sound and light indication | |
Recorder |
|
Speed of paper feeding |
12.5mm/s, 25mm/s, 50 mm/s (Only valid whit B Type recorder) |
Recording medium |
50mm thermal paper |
Recording track |
Single track or tri-track | |
