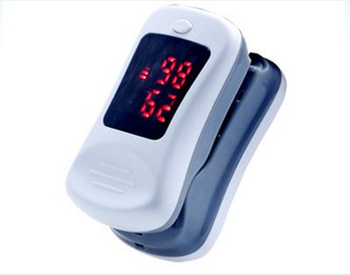

LED Fingertip Pulse Oximeter (PM-500A)
You are here: Home » Products » Emergency Treatment Products » Strecher, Patient Monitor, Defibrillator » LED Fingertip Pulse Oximeter (PM-500A)
Share to:

LED Fingertip Pulse Oximeter (PM-500A)

Quantity:
  • PM-500A
  • Pulse Oximeter
  • Adult, Pediatric, Infant, and Neonate
  • -20°c~60°c
  • LED
  • 50g(Include Batteries)
  • CE, ISO
  • 90181930
  • Imaging Diagnostic Equipment
  • CE
  • 0 ~ 45 °c
  • 30 ~ 250bpm
  • 63(H)Mm×34(W)Mm×33(D)Mm
  • everich
  • China
 Features:
        Mini and light design with"all in one"integrated for easy carrying
           LED screen to display measurements of SPO2 , PR , Pulse strength
           Immediate and real time spot check
           Single button interface for easy operation
           AAA alkaline/rechargeable battery supporting 3 hour continuous operation
           12Indicator to display low battery capacity
           Automatic power off
Specifications:
Oxygen Saturation(SPO2)

Measurement range: 35% ~ 100%
Accuracy:70%~100%,±2% 0%~69%,unspecified
Resolution: 1%




Pulse Rate

Measurement range: 30bpm~250bpm
Accuracy: ±2bpm
Resolution: 1bpm




Display Mode

SPO2: 1 digit of 2 segment red LED\2 digit of 7 segment red LED
PR: 3 digit of 7segment red LED
pulse strength and/or battery capacity:  6 segment red LED
Indicator for low battery capacity: Red LED




Power Requirements

Battery type: Two AAA (1.5V) alkaline or rechargeable batterY




Environment Requirements

Temperature
Operation:0ºC~40ºC
Transportation and storage:-20ºC~60ºC

Humidity
Operation: 15%~95% (non-condensing)
Transportation and storage: 10% ~ 95% (non-condensing)

Atmospheric pressure
Operation: 86kPa~106kPa
Transportation and storage: 50kPa~106kPa




Dimension

63(H)mm×34(W)mm×33(D)mm




Net weight

50g(include batteries)
