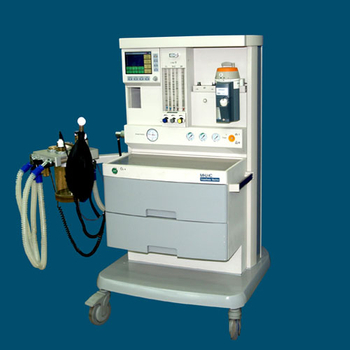

MHJ-IC is a new generation anesthesia machine incorporating anesthesia, respiratory and monitoring functions. ANESTHESIA MACHINE:
It adopts a two-stage pressure regulator and a high precision dual-tube flowmeter to provide an accurate fresh gas output. Its build-in safety devices such as ORC system, oxygen deficiency alarm and N2O cut-off make anesthesia more safe. The specially constructed inter-lock mechanism may guarantee only one of the two parallel vaporizers to be switched on at a time., The selected vaporizers from world famous companies as Drager 19.3, Ohmeda TEC-5 and Penlon Sigma Delta satisfy different requirements of customers.
With MHJ-IC it is possible to act low-flow anesthesia because of its unique integrated circle system- a system that keeps the inhaled tidal volume from fresh gas. So it not only saves anesthesia agent but also reduces pollution to operation room.
Specification
| Gas supply | O2/N2O/AIR: 0.27-0.55MPa |
| Flow adjustment | O2/N2O :0.05-10L/min
Air:0.2-12L/min |
| Flow adjustment | O2+N2O or O2+Air |
| O2 flush | 20-75L/min |
| Vaporizer | Draeger LC output concentration 0.2%-6% |
| Monitoring | Exhaled tidal volume, Minute volume, airway pressure, ventilation frequency, Inspired oxygen concentration. |
| Alarm | Visual and Audible alarm for O2 supply low, Paw low, Paw high, MV low, MV high, Apnea, O2%low, O2%high, battery low, batter insufficient Power failure. |
Gas supply: O2/N2O/AIR: 0.27-0.55MPa
Flow adjustment: O2/N2O :0.05-10L/min
Air:0.2-12L/min
Flow adjustment :O2+N2O or O2+Air
O2 flush: 20-75L/min
Build-in Safety device
Oxygen ratio control(ORC)guarantee minimum 25% concentration of oxygen
Oxygen deficiency alarm when O2≤0.2Mpa,audible alarm occurs and lasts 7 seconds
N2O cut-off when O2≤0.1Mpa,N2O cut-off is activated
Backup power when AC power fails,the power switch over to internal battery which will run the machine for approximately four hours
Vaporizer:
Draeger LC output concentration 0.2%-6%
ZFG-B1 output concentration:0-5VOL% with T.P.F.compensations
Anaesthesia circuit:
Relief valve:0-7kPa
CO2 absorber volume:≥1.6L
Leakage:≤175mL/min
Anaesthesia ventilator:
Ventilation Modes:Manual,Spontaneous,Mechanical CMV, etc.
I:E ratio 1:9.9-1:9.9(Reversed 1:E optional)
Ventilation Frequency:4-65bmp
Tidal Volume: 20-1500ml(optional)
PEEP:0-2kPa
Monitoring:Exhaled tidal volume, Minute volume, airway pressure, ventilation frequency, Inspired oxygen concentration.
Alarm: Visual and Audible alarm for O2 supply low, Paw low, Paw high, MV low, MV high, Apnea, O2%low, O2%high, battery low, batter insufficient Power failure.
