SK-500III/IIIA/IIIB/IIIC
4-Channel Syringe Pump
8-Channel Syringe Pump
0.1 Ml/H - 100 Ml/H
0.1 Ml/H - 600 Ml/H
0.1ml/H
CE, ISO
90189090
2-Channel Syringe Pump
6-Channel Syringe Pump
0.1 Ml/H - 400 Ml/H
0.1 Ml/H - 200 Ml/H
0.1 Ml/H - 1500 Ml/H
everich
China

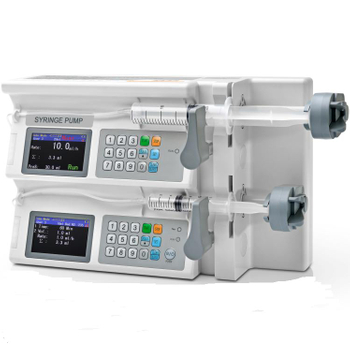

| 500III/IIIA/IIIB/IIIC Multi-channel Syringe Pump | ||||||
| 500III series is designed for neonatal, pediatric and adult patients in the OR, ICU, CCU and Neurology department | ||||||
| Features | ||||||
| l Designed for multiple drug injection application (up to 8 pumps) | ||||||
| l Only one power cord for multi-channel pumps | ||||||
| l Innovative Link Mode offers continuous injection to improve safety for patients | ||||||
| l Drug library with all the most used drugs | ||||||
| l History record review and last configuration memory | ||||||
| l Anti-bolus system to reduce significantly bolus after occlusion release | ||||||
| l Change the flow rate while operating | ||||||
| l Manual bolus and automatic bolus | ||||||
| l Wireless data transmission with infusion supervision system and bedside workstation | ||||||
| 500III | 500IIIA | 500IIIB | 500IIIC | |||
| Syringe Pump | 2-channel Syringe Pump | 4-channel Syringe Pump | 6-channel Syringe Pump | 8-channel Syringe Pump | ||
| Syringe Type | 5, 10, 20, 30, 50 ml | |||||
| Operating Mode | 1) Flow rate mode, rate range: 0.1 - 1500.0 ml/h, maximum rate value depends on different syringes | |||||
| 2) Time mode, time range: 1-2000min, Preset Volume: 0.1-999.9ml | ||||||
| 3) Body weight mode, weight range: 0.1 - 300.0kg, drug limit: 0.1-999.9mg, drug unit: mg/g, dose limit: 0.1 - 1500.0, dose unit: ug/kg/min or mg/kg/h, preset volume range: 0.1 - 999.9ml | ||||||
| 4) Link mode | ||||||
| Flow Rate Range | 5 ml syringe: 0.1 ml/h - 100 ml/h | |||||
| 10 ml syringe: 0.1 ml/h - 200 ml/h | ||||||
| 20 ml syringe:0.1 ml/h - 400 ml/h | ||||||
| 30 ml syringe: 0.1 ml/h - 600 ml/h | ||||||
| 50 ml syringe: 0.1 ml/h - 1500 ml/h | ||||||
| Increment | 0.1ml/h | |||||
| Accumulated Injection Volume | 0.1 - 9999.9 ml | |||||
| KVO Rate | 0.1-5.0ml/h adjustable,1ml/h as default | |||||
| Drug library | 40 drugs | |||||
| History record | 1500 records (Operation status, Infusion Information, Alarms) | |||||
| Saved syringe brands | 15 brands | |||||
| Bolus Rate | 5 ml syringe: 100 ml/h; 10 ml syringe: 200 ml/h; 20 ml syringe: 400 ml/h; | |||||
| 30 ml syringe: 400 - 600 ml/h adjustable; 50 ml syringe: 600 - 1500 ml/h adjustable | ||||||
| Accuracy | ± 3% | |||||
| Display | ||||||
| Screen | Independent 3.0 inch color TFT screen for each pump channel | |||||
| Information | Operation Mode, Flow Rate, Accumulated Injection Volume, Syringe Size, Battery Capacity, Bed No., AC power indicator, Battery charge indicator, Check the Syringe, etc. | |||||
| Status Indicator | Stop, Run, Bolus, KVO | |||||
| Alarm Type | ||||||
| Finish, Near, Syringe Empty, Syringe Disengaged, Occlusion, System Error, Battery Empty, Low Battery, Reminder to Operate, No AC Power, Memory Error, Motor Error | ||||||
| Occlusion Alarm Pressure Range: 3 levels: 70kPa, 100kPa, 130kPa (±30kPa), Level Low as default | ||||||
| Battery | ||||||
| Type | Lithium polymer battery | |||||
| Life | Up to 2 hours continuous operation@5 ml/h flow rate | |||||
| Environment | ||||||
| Temperature | 5 - 40 ºC for operating; -40 - 50 ºC for storage | |||||
| Air Pressure | 86 - 106 kPa for operating; 50 - 106 kPa for storage | |||||
| Humidity | 20 % - 80 % for operating; 10 % - 95 % for storage | |||||
| Others | ||||||
| Classification | Class II, Type CF | |||||
| Dimension | 320 mm(L) × 110 mm(D) × 200 mm(H) | 320 mm(L) × 110 mm(D) × 400 mm(H) | 320 mm(L) × 110 mm(D) × 600 mm(H) | 320 mm(L) × 110 mm(D) ×800 mm(H) | ||
| Weight | 3.4 kg | 7.0 kg | 10.4 kg | 14 kg | ||
| Power Supply | 100 - 240 VAC, 50/60 Hz | |||||
| Waterproof level | IPX3 | |||||
