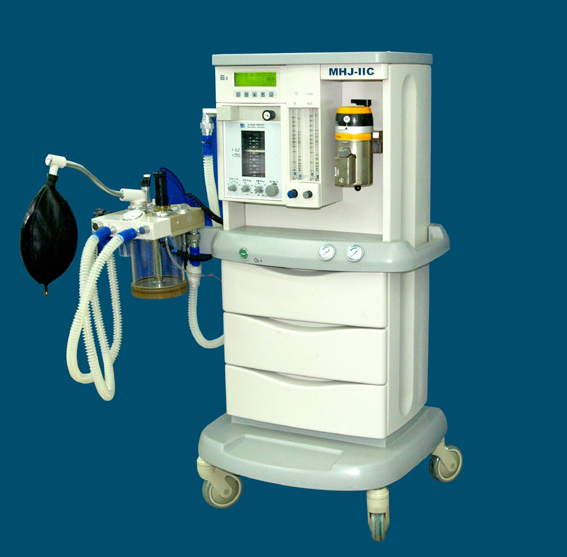

MHJ-IIC is a multi-functional anesthesia machine incorporating anesthesia, respiratory and monitoring functions.
Anesthesia Machine: Two-stage pressure relief; high-precision N2Oand O2 flowmeters.ORC,O2-deficiency alarm and N2O cut-off device. It′s equipped with ZFG-B1 compensation vaporizer, such as Drager 193.,Ohmeda TEC-5 and Penlin Sigma Delta.
Integrated breathing system satisfies clinical demand of low-flow anesthesia.
Anesthesia Ventilator: Pneumatic-driven and electric-controlled, time-cycled and volume-constant.
Low air-consumption. Power failure alarm and low-flow alarm.
Monitor: Equipped with respiratory monitory for realtime monitor on tidal volume, minute volume, respiratory frequency and oxygen concentration assuring patients safety
Specification
Adjustment range of flow | O2:0.1-15L/min |
N2O: 0.05-10L/min |
ORC: O2 concentration≥25%(O2+N2O) |
O2 Flush: 35-75L/min |
Anesthesia ventilator Frequency | 6-40bpm |
Tidal volume | 100-1200ml |
Maximum airway pressure | 6kpa |
Respiratory monitor Tidal volume | 0-1500ml |
MV | 0-40L/min |
Oxygen concentration | 0-40 L/min |
Adjustment range of flow :O2:0.1-15L/min
N2O: 0.05-10L/min
ORC: O2 concentration≥25%(O2+N2O)
O2 Flush: 35-75L/min
O2 deficiency alarm/N2Ocut-off:
As O2 pressure is≤0.2Mpa,audible;
As O2 pressure is≤0.14Mpa,N2O decrease;
As O2 pressure is≤0.04Mpa,N2O is cut off automatically;
APL adjustment: 0 -7kPa;CO2 absorber:1.6L
Vaporizer: 0.2-5VOL%,with pressure,flow and temperature compensation functions.
Anesthesia ventilator:
Frequency:6-40bpm:
Tidal volume:100-1200ml
1:E:1:-1:3,adjustable
Maximum airway pressure:6kpa
Respiratory monitor:
Tidal volume:0-1500ml
MV: 0-40L/min
Oxygen concentration:0-40 L/min
Airway Pressure:0-9.9kpa
