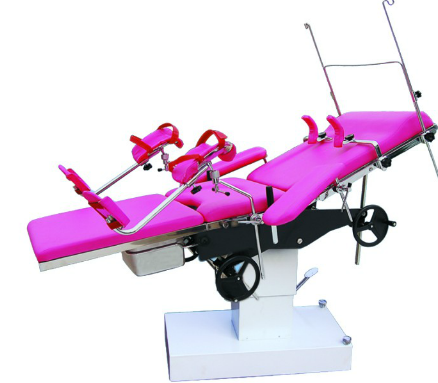

1. General Description.:
This bed is designed for women's parturition and gynaecological operation. Leg section of the parturition bed can be disassembled, Various movement of the bed is controlled by human, Body posture is adjusted by mechanical drive organization. It can be raised or lowered hydraulically by means of an oil pump. This product is operate by human, can meet the demand of gynecology diagnoses, examination, surgery, body position of the parturient woman.
According to the matter, there are two types: Model JHC-06B and JHC-06C. The outer hulls of the model 06C are ordinary carbon steel, the other are stainless steel. The technical parameters and devices are same.
2. Specifications:
Dimensions of Table Top:
Overall length...1250~1900mm
Width...600mm
Dimensions of Sections:
Back Section...800× 600mm
Seat Section...400× 600mm
Leg Section...650× 600mm
Table Top from Floor:
Max. Height...920mm
Min. Height...680mm
Rising Distance: ...≥ 240mm
Adjustments of Sections:
Back section raised from the horizontal...≥ 45°
Back section lowered from the horizontal...≥ 10°
Reversed Trendelenburg...≥ 8°
Trendelenburg...≥ 20°
Safe working load...135kg
