1, General Description:

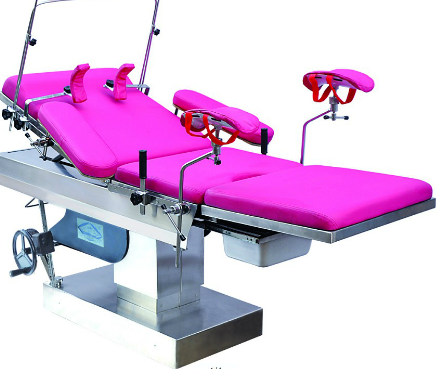

This bed is designed for women's parturition and gynaecological operation. Leg section of the parturition bed can be disassembled, each kind of movement is operated by human, the adjustment of front and back lean is mechanical drive structure, back section introduce manual barometric pressure spring structure, the angle is adjustable. The table-board movement is controlled by hydraulic pressure. This product is operate by human, can meet the demand of gynecology diagnoses, examination, surgery, body position of the parturient woman.
According to the matter, there are two types: Model JHC-06 and JHC-06A. The outer hulls of the model JHC-06 are ordinary carbon steel, the other are stainless steel. The technical parameters and devices are same.
2, Specifications:
Dimensions of Table Top:
Overall length...1330~1880mm
Width...600mm
Dimensions of Sections:
Back Section...760× 600mm
Seat Section...480× 600mm
Leg Section...550× 600mm
Table Top from Floor:
Max. Height...990mm
Min. Height...750mm
Rising Distance...240mm
Adjustments of Sections:
Back section raised from the horizontal...≥ 55°
Reversed Trendelenburg...≥ 10°
Trendelenburg...≥ 5°
Safe working load...135kg
