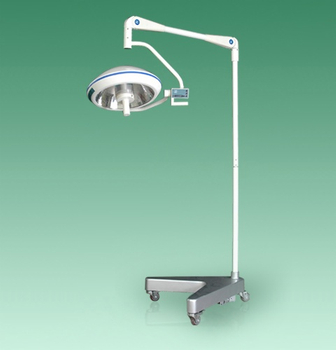

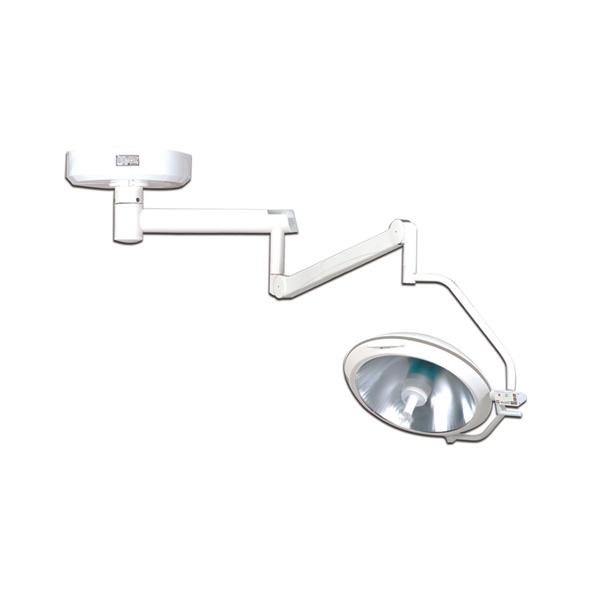

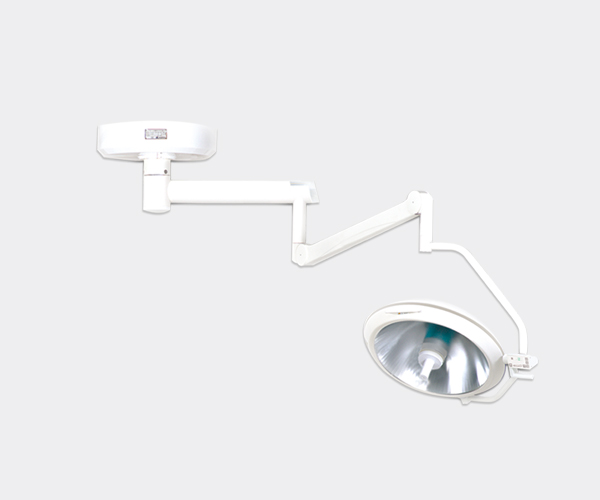

Operating Lamp (model KL500-III)

  • KL500-III

  • 5000 K

  • ISO, Cmd

  • 4500+/-500 K

  • >=600

  • 500mm

  • 220+/-10% 50Hz

  • everich

  • China

  • Steel

  • Kl500-III

  • White

  • 100-250 Mm

  • <=12

  • 150W

  • 220va

  • CE, ISO

  • 85393910

KL500 shadowless lamps meet the requirements for all circumstances of surgical operations. It is an ideal lighting facility for modern surgical operations.
Reflector system designed in CAD; Color temperature close to that of sunlight; Making the tissue surface visible under natural color; Depth of tubular light beams up to over 500mm; Uniform illumination effectively eliminating shadows under any circumstance;

Special heat-isolated radiation filter reduces heat to the minimum level.

Rippled panel made of shock-resistant and heat-resistant PC material, making light soft, uniform and increasing safety. Light adjustment circuit adopts CPU control; And the illumination has 8-stage increase or decrease and has illumination memory.

One lamp holder with two bulbs; The standby lamp will start operation within 1/2 second when the major one malfunctions, ensuring the continuation of surgical operation. Handle panel has indicator for the damage of major and standby lamps. Major and standby bulbs can be changes easily; Dischargeable handle sheath can be sterilized in steam sterilizer. The stand type device which can move with skid is very convenient and is not limited by the operation field. At the same time, it also can match the DC current to use.
Tungsten halogen bulbs of internal brand are adopted with the average service life up to 1000 hours.

Technical Specifications

IIIumination Lx (at the distance of 1m): 50000-120000
Color Temperature: 4500+/-500 k
Diameter of Spot: 100-250 mm
Depth of light beam: ≥600
Brightness adjustment: 8-stage continuous light adjustment
Service range for temperature rise (º C) ≤12
Temperature rise on the head of patient under surgical operation (º C) ≤2
Diameter of lamp holder 500 mm
Shift of major and standby lamps: Automatic
Bulb power: 150 w
Power supply: 220+/-10% 50Hz
Input power: 220VA
