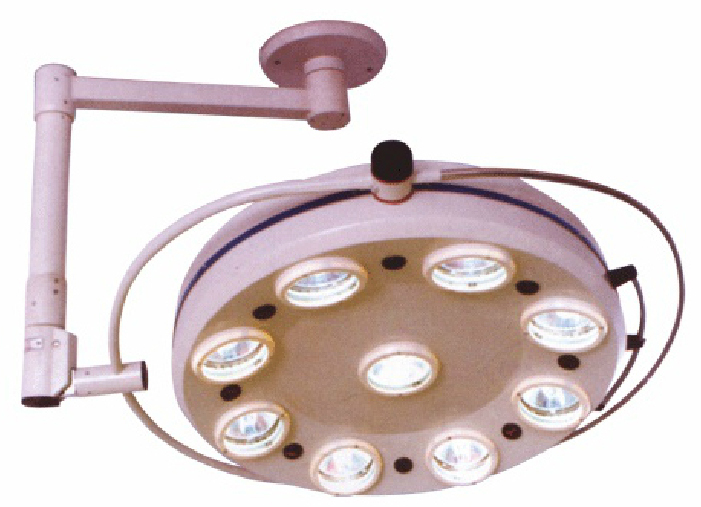

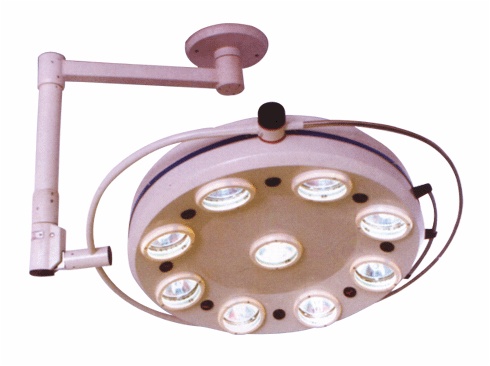

Operating Lamp (model: L739-II)

Quantity:
Inquire Add to Basket

  • L739-II

  • Halogen Bulb,Build-in Type

  • Gradual Changing

  • 24V

  • 4000+-500k

  • 220V,50Hz, ~110V,60Hz

  • 25W

  • 115×115×38(Cm)

  • everich

  • China

  • Warm White

  • 25W

  • Spot Lighting

  • >=100000lx

  • Ra>=85

  • 24V

  • 2800mm

  • Plywood Box

  • CE, ISO

  • 85393910

Main technical parameters:
Illuminance ≥100000Lx
Color temperature 4000±500k
Color rendering index Ra≥85
Mains voltage ~220V,50Hz, ~110V,60Hz
Rated voltage of bulb 24V
Rated power of bulb 25W
The lowest height for lnstal lation 2800mm
Packaging:



Type Parts Package dimension Gross weight Net weight Packing
L739-II lamp head 115×115×38(cm) 56(Kg) 23(Kg) Plywood box
Swivelling arm 100×40×34(cm) 51.5(Kg) 40(Kg) Plywood box



Installation requirements:
1.The basement should support a burden of 500Kg.If the height of the ceiling is more than 3.2m,one extension rack should be added(it can be specially made by us)
2.The ground lead of the user should be connected with the groud lead terminal of the product.(The kelly line at the base)
3.Please contact with the company for any special requirements in installation. Meanwhile, we take the job for installation.
