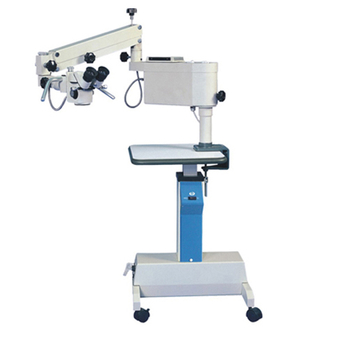

YZ20P OPERATION MICROSCOPE( MULTI-SECTION)
· Characteristics
· The whole microscope is smart.
· Three-step magnifications.
· Spring balance system in the arm ensures the microscope move freely.
· All of the lens are multi-coated, mildewproof and anti-reflection
· For optional objectives and other parts applicable to ENT, SURGERY and, gynaecology.
Specification:
| Eyepiece Magnification | 12.5x |
| Adjustable Dioptor | ± 5D |
| Adjustable range for Pupil Distance | 50mm~70mm |
| Objective Lens | f=200 |
| Working Distance(mm) | 190mm |
| Magnifications | 6X 10X 16X |
| Illumination Source | 12V/100W, Halogen Lamp |
| Illumination Type | 6° cold light source coaxial Illumination |
| Coaxial Illumination | ≥ 10000lx |
| Reach Radius of Arm | 860mm |
| Adjustable Vertical Range | 850mm~1100mm |
| Voltage | AC220V± 10%/ 50Hz± 1Hz, AC110V± 10%/60Hz± 1Hz |
| Power | 120VA |
| Fuse | AC250V T1.25A, AC125V T2.5A |
| Electrical Safety Standard | Executive Standard IEC 601-1. Class1Type B |
| Total GrossWeight | 61kg |
· Specification
Eyepiece Magnification: 12.5×
Adjustable Dioptor: ± 5D
Adjustable range for Pupil Distance: 50mm~70mm
Objective Lens: f=200
Working Distance(mm): 190mm
Magnifications: 6X 10X 16X
Illumination Source: 12V/100W, Halogen Lamp
Illumination Type: 6° cold light source coaxial Illumination
Coaxial Illumination: ≥ 10000lx
Reach Radius of Arm: 860mm
Adjustable Vertical Range: 850mm~1100mm
Voltage: AC220V± 10%/ 50Hz± 1Hz, AC110V± 10%/60Hz± 1Hz
Power: 120VA
Fuse: AC250V T1.25A, AC125V T2.5A
Electrical Safety Standard: Executive Standard IEC 601-1. Class1Type B
Packing Volume 0.283m3
Total GrossWeight: 61kg
