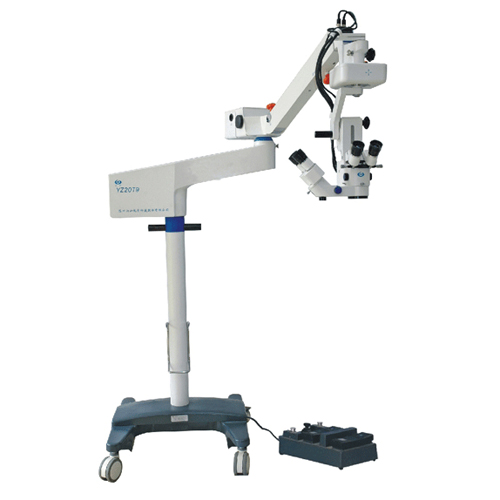

YZ20T9 OPERATION MICROSCOPE ( OPHTHALMOLOGY)
· Characteristics
· Five-step magnifications for main microscope, three-step magnifications for assistant microscope; Fine focusing for assistant microscope keeps the same clearness as main microscope.
· Lens made of imported glass from Germany can reduce the optical aberration.
· X/Y movement can be automatically centered.
· Independent electrical box has automatical diagnosis function, which is very convenient for repair if necessary.
· Specification:
| Eyepiece Magnofication | 12.5× /18B |
| Objective Lens | f=200mm |
| Working Distance | 190mm |
| Magnification for Main Microscope | 4× , 6× , 10× , 16× , 25× |
| Magnification for Assistant Microscope | 6× , 10× , 14× |
| Diameter of Field | 58mm, 38mm, 23mm, 14mm, 9mm |
| Dipoter Adjustment | ± 7D |
| Pupil Distance | 50mm~70mm |
| Maximal Resolutin | 119 LP/mm |
| Focusing Range for Assistant Mircoscope | ≥30mm |
| Illumination Source | 12V/100W |
| Illumination Type | 6° +0° Coaxial illumination and 26° Oblique illumination which can be adjusted for slitting and the slitting width is adjustable. |
| Coaxial Illumination | ≥ 50000lx |
| Oblique Illumination | ≥ 45000lx |
| Reaching Range of Arm | 1240mm |
| Adjustable Vertical Range | 850mm~1350mm |
| Fine Focusing Speed and Range | ≤ 2mm/s, ≥ 50mm |
| Speed for X/Y and Range | ≤ 2mm/s, 50mm× 50mm |
| Voltage | AC220V± 10%/ 50Hz± 1Hz, AC110V± 10%/60Hz± 1Hz |
| Power | 330VA |
| Fuse | AC250V T4A, AC125V T8A |
Eyepiece Magnofication: 12.5× /18B
Objective Lens: f=200mm
Working Distance: 190mm
Magnification for Main Microscope 4× , 6× , 10× , 16× , 25×
Magnification for Assistant Microscope 6× , 10× , 14×
Diameter of Field: 58mm, 38mm, 23mm, 14mm, 9mm
Dipoter Adjustment: ± 7D
Adjustable range for Pupil Distance: 50mm~70mm
Illumination Source: 12V/100W
Illumination Type: 6° +0° Coaxial illumination and 26° Oblique illumination which can be adjusted for slitting and the slitting width is adjustable.
Coaxial Illumination: ≥ 50000lx
Oblique Illumination: ≥ 45000lx
Reaching Range of Arm: 1240mm
Adjustable Vertical Range: 850mm~1350mm
Fine Focusing Speed and Range: ≤ 2mm/s, ≥ 50mm
Speed for X/Y and Range: ≤ 2mm/s, 50mm× 50mm
Voltage: AC220V± 10%/ 50Hz± 1Hz, AC110V± 10%/60Hz± 1Hz
Power: 330VA
Fuse: AC250V T4A, AC125V T8A
Whole Packing Volume: 0.786m3
Total Weight: 213kg
· Optional Accessory
· Teaching Tube, Beam Splitter.
· 1/3" CCD camera, CCD Adaptor, Beam Splitter and relevant Cables.
.
