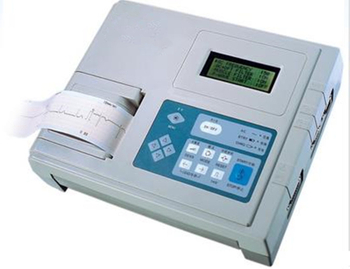

Single Channel Interpretive ECG (ECG-11DII)

Quantity:
Inquire Add to Basket

  • ECG-11DII

  • Digital EEG/ECG/EKG/EMG/VCG

  • All People

  • 1mv±5%

  • 12 Bit

  • 0.05 ~ 150Hz

  • ±400mv

  • 192X64 Graphic LCD

  • CE, ISO

  • 90181100

  • Physiological Functions of Diagnosis and Monitoring Equipment

  • CE, ISO13485

  • Standard 12 Leads

  • 1ms

  • ≥3.2s

  • 6.25, 12.5, 25, 50mm/S

  • 2.5, 5, 10, 20mm/Mv

  • everich

  • China


  Features:
     1/2 channel printout format
           20x4 character LCD (4 line) to display setting menu and operating condition
           Rhythm lead with particular performance of R-R interval histogram and trengraph
           Auitomatic measurement of standard ECG parameters
           85 exams in memory for recall, duplication and transmission to PC
           Able to enter patient info of ID, sex, age, and weight
           Bilingual operation
Specfictions:

Lead
Standard 12 leads

Input Circuit
Isolated input circuit;
Protection against defibrillation and pace making

Calibration Voltage
1mV±5%

Sampling Rate
1ms

A/D Conversion
12 bit

Lead Duration
Automatically increase lead duration in AUTO1~AUTO3

Filter
AC 50Hz(-20dB) , EMG 35Hz(-3dB)

CMRR
> 100dB

Input Circuit Current
≤50nA

Input Impedance
>50MΩ

Patient Leakage Current
< 10μA

Time Constant
≥3.2s

Frequency Response
0.05 ~150Hz

Noise Level
< 15uVp-p

Paper Speed
6.25, 12.5, 25, 50mm/s

Sensitivity
2.5, 5, 10, 20mm/mV

Polarizing Voltage
±400mV

Baseline Control
Automatic baseline control
Automatic inhibition of baseline drift
