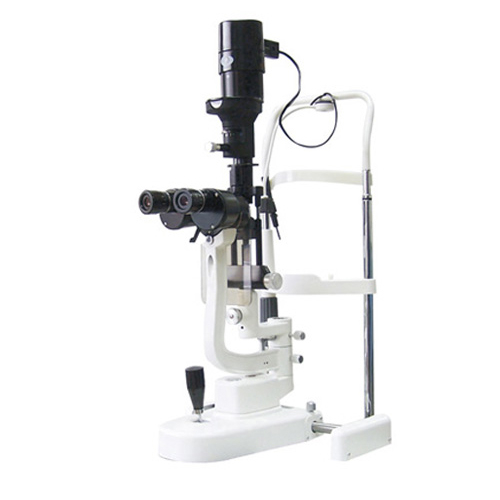

Slit Lamp Microscope (model YZ5F)

Quantity:
  • YZ5F
  • Biological
  • Portable
  • Optics
  • Two Steps Magnifications
  • 0mm~9mm Adjustable(Slit Is Round When The Slit Wid
  • Heat Absorption,Grey,Redfree,Cobalt Blue
  • AC220V±22 V ,AC110V±11 V
  • 24kg
  • CE, ISO
  • 90118000
  • <50X
  • Binoculars
  • Rectangular Prism
  • Converging Stereoscope Microscope
  • 10X and 16X
  • 1mm~8mm Adjustable
  • 12V/30W Halogen Bulb
  • 720mm X 495mm X 480mm
  • everich
  • China

The product has more excellent optical performance and can be connected with international standard interface.
Detailed profile
Characteristics:
·  Converging stereoscope microscope provides the clear images.
·  Imported Schott optics from Germany reduces optical distortion, increases clarity and depth of focus.
·  All the optical lenses are moistureproof, mildewproof and anti-reflected treated.
·  Three-step magnifications (10X,16X,25.6X) can be changed by lever and 10X&16X eyepieces are available.
·  All the joints can be connected by accessories with international standards.
Specificatiions:


Microscope Type

Converging stereoscope microscope

Objective Magnification

Two Steps Magnifications

Eyepiece

10x and 16x

Magnifications
(Field of View)

10x(φ18mm),16x(φ14.5mm)
16x(φ11.25mm),25.6x(φ9mm)

Pupil Distance

10x Eye Piece 55mm~82mm
16x  Eye Piece 51mm~78mm

Diopter  Adjustment

10x  Eye Piece ±8D
16x  Eye Piece  ±10D

Slit Width

0mm~9mm adjustable(Slit is round when the slit width is 9mm)

Slit Height

1mm~8mm adjustable

Slit Angle

0°~180°adjustable

Slit Inclination

5°,10°,15°,20°,four steps adjustable

Diameter of Light Spot

φ9mm,φ8mm,φ5mm,φ3mm,φ2mm,φ1mm,φ0.2mm

Filter

Heat Absorption,Grey,Redfree,Cobalt Blue

Illumination Bulb

12V/30W Halogen Bulb

Input Voltage

AC220V±22 V ,AC110V±11 V

Electrical Safety Standard

Conform to Standard:IEC601-1,Class I,Type B

Packing Volume

720mm x 495mm x 480mm

Total Weight

24Kg

Optional Accessories

R type , T type Applanation Tonometer, Measuring Eye Piece,Trihedron Lens,Gonioscope,Funduscope,Aspheric Lens

Microscope Type: Converging stereoscope microscope
Objective Magnification: Two Steps Magnifications
Eyepiece: 10x and 16x
Magnifications
(Field of View): 10x(φ18mm),16x(φ14.5mm)
16x(φ11.25mm),25.6x(φ9mm)
Pupil Distance: 10x Eye Piece 55mm~82mm
16x  Eye Piece 51mm~78mm
Diopter  Adjustment: 10x  Eye Piece ±8D
16x  Eye Piece  ±10D
Slit Width: 0mm~9mm adjustable(Slit is round when the slit width is 9mm)
Slit Height: 1mm~8mm adjustable
Slit Angle: 0°~180°adjustable
Slit Inclination: 5°,10°,15°,20°,four steps adjustable
Diameter of Light Spot: Ï†9mm,φ8mm,φ5mm,φ3mm,φ2mm,φ1mm,φ0.2mm
Filter: Heat Absorption,Grey,Redfree,Cobalt Blue
Illumination Bulb: 12V/30W Halogen Bulb
Input Voltage: AC220V±22 V ,AC110V±11 V
Electrical Safety Standard: Conform to Standard:IEC601-1,Class I,Type B
Packing Volume: 720mm x 495mm x 480mm
Total Weight: 24kg
Optional Accessories: R type , T type Applanation Tonometer, Measuring Eye Piece,Trihedron Lens,Gonioscope,Funduscope,Aspheric Lens
