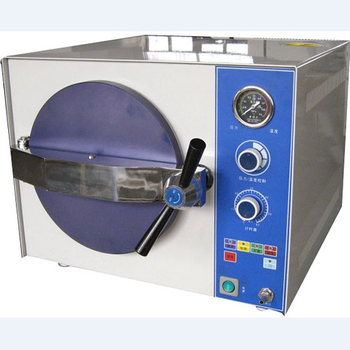

TM-Xb20j/24j Table Top Steam Sterilizer (model TM-XB20J/24J)

Quantity:
Inquire Add to Basket

  • TM-XB20J/24J

  • Pressure Steam Sterilization Equipments

  • 220V

  • Ultra High Temperature Alarm

  • Stainless Steel

  • Suzz20132570315

  • 134oc

  • 0-60 Min

  • 1.5kw/AC 220V 50Hz (AC110V 60Hz)

  • Auto-Protection

  • for 4~6 Minutes

  • CE, ISO

  • 84192000

  • Pressure Steam

  • CE, ISO13485, ISO9001

  • Without LCD Display

  • Sterilization Information Recording and Printing

  • Type 3

  • 0.22MPa

  • 105-134oc

  • <=+/-1oc

  • Can Be Preset

  • Stainless Steel

  • everich

  • China


Charcteristucs:
1.Indicator light indicates working state.
2.For 4~6 minutes rapidly sterilizing.
3.Sterilizing temperature and time can be preset.
4.Steam-water inner circulation system:no steam discharge,and the environment for sterilizing will be clean and dry.
5.Over temperature & over pressure auto-protection.
6.Safe protection of water lacking.
7.Exhaust the cool air automatically.
8.With three stainless steel sterilizing plates.
9.The chamber of the sterilizer is made of stainless steel.
10.Automatically shut off with beep reminding after sterilization.

Technical data:

MODEL TECHNICAL DATA
TM-XB20J
TM-XB24J

Sterilizing chamber volume
20L(φ250×420 mm)
24L(φ250×520 mm)

Maximum working pressure
0.22Mpa

Maximum working temperature
134ºC

Adjustment of temperature
105-134ºC

Timer
0-60 min

Chamber temperature equal
≤ ± 1ºC

Source power
1.5KW/AC 220V 50Hz (AC110V 60HZ)

Sterilizing plate
340×200×30 mm (3 piece)
400×200×30 mm (3 piece)

Dimension
480×480×384 mm
580×480×384 mm

Package dimension
700×580×500 mm
800×580×500 mm

 G. W/N.W
44/40 kg
50/45 kg
