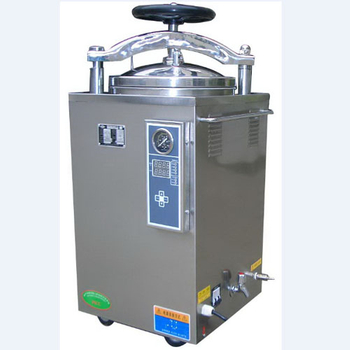

Vertical Pressure Steam Sterilizer in Hospital (35L)
You are here: Home » Products » Laboratory Products » Sterilizer, Blood Mixer, Pipette » Vertical Pressure Steam Sterilizer in Hospital (35L)
Share to:

Vertical Pressure Steam Sterilizer in Hospital (35L)

  • LS-35HD
  • Pressure Steam Sterilization Equipments
  • 220V
  • Ultra High Temperature Alarm
  • Stainless Steel
  • Suzz20132570314
  • 134oc
  • <=1oc
  • 105~134oc
  • Hand Wheel Type of Quick-Open
  • Two Stainless Steel Sterilizing
  • CE, ISO
  • 84192000
  • Pressure Steam
  • CE, ISO13485, ISO9001
  • Without LCD Display
  • Sterilization Information Recording and Printing
  • Type 3
  • 0.22MPa
  • 0.23 MPa
  • 0~99min
  • Stainless Steel
  • Auto-Protection
  • everich
  • China
(Digital Display Automation )
l .Fully stainless steel structure
2.Hand wheel type of quick-open door structure
3.Door safety lock system
4.Digital display of working status,touch of key
5.Auto discharge the cool air,and steam discharging auto matically after sterilization
6.Over temperature&over pressure auto-protection
7.Safe protection of water lacking
8.Self-inflating type seal
9.Automatically shut off with beep reminding after sterilization
10.Used for sterilization of medical instruments, medical cotton products.
11.Fully stainless steel  SUS304/AISI 304 -3mm
12.24 months warranty
13.Possible to install drying system according request
Technical Data:
Model technical data LS-35HD LS-50HD LS-75HD LS-100HD
Chamber volume 35L(φ318×450)mm 50L(φ340×550) mm 75L(φ400×600) mm 100L(φ440×650) mm
 working pressure 0.22MPa 0.14 MPa
Working temperature 134ºC 126ºC
Max working pressure 0.23 Mpa 0.165 Mpa
Heat average ≤±1ºC
Timer 0~99min  or 0~99hour59min
Adjustment of temperature 105~134ºC  105~126ºC
Power 2.5Kw/AC220V.50Hz 3Kw/AC220V.50Hz 4.5Kw/AC220V.50Hz
Overall dimension 450×450×1010(mm) 510×470×1130(mm) 560×560×1120 (mm) 540×560×1250 (mm)
Transport dimension 570×550×1150(mm) 590×590×1280(mm) 650×630×1280(mm) 680×630×1370(mm)
G.W/N.W 72Kg/56Kg 88Kg/ 68Kg 100Kg/ 80Kg 110Kg/ 85Kg
