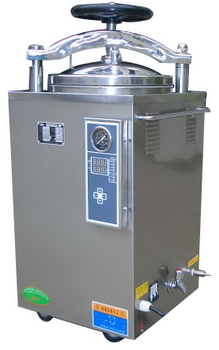

VERTICAL PRESSURE STEAM STERILIZER
(Digital Display Automation )
Characteristics:
l .Fully stainless steel structure
2.Hand wheel type of quick-open door structure
3.Door safety lock system
4.Digital display of working status,touch of key
5.Auto discharge the cool air,and steam discharging auto matically after sterilization
6.Over temperature&over pressure auto-protection
7.Safe protection of water lacking
8.Self-inflating type seal
9.Automatically shut off with beep reminding after sterilization
10.Used for sterilization of medical instruments, medical cotton products.
11.Fully stainless steel SUS304/AISI 304 -3mm
12.24 months warranty
13.Possible to install drying system according request
Technical Data:
| Model technical data | LS-35HD | LS-50HD | LS-75HD | LS-100HD |
| Chamber volume | 35L(φ318×450)mm | 50L(φ340×550) mm | 75L(φ400×600) mm | 100L(φ440×650) mm |
| working pressure | 0.22MPa | 0.14 MPa |
| Working temperature | 134ºC | 126ºC |
| Max working pressure | 0.23 Mpa | 0.165 Mpa |
| Heat average | ≤±1ºC |
| Timer | 0~99min or 0~99hour59min |
| Adjustment of temperature | 105~134ºC | 105~126ºC |
| Power | 2.5Kw/AC220V.50Hz | 3Kw/AC220V.50Hz | 4.5Kw/AC220V.50Hz |
| Overall dimension | 450×450×1010(mm) | 510×470×1130(mm) | 560×560×1120 (mm) | 540×560×1250 (mm) |
| Transport dimension | 570×550×1150(mm) | 590×590×1280(mm) | 650×630×1280(mm) | 680×630×1370(mm) |
| G.W/N.W | 72Kg/56Kg | 88Kg/ 68Kg | 100Kg/ 80Kg | 110Kg/ 85Kg |
