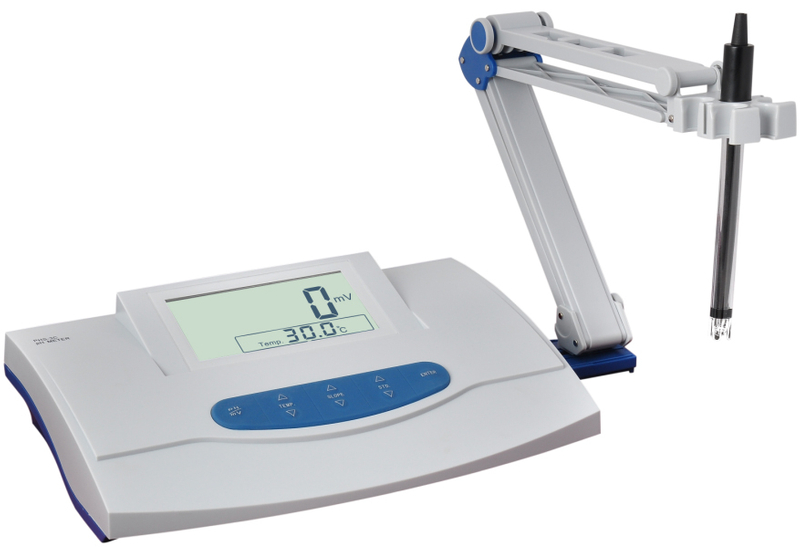

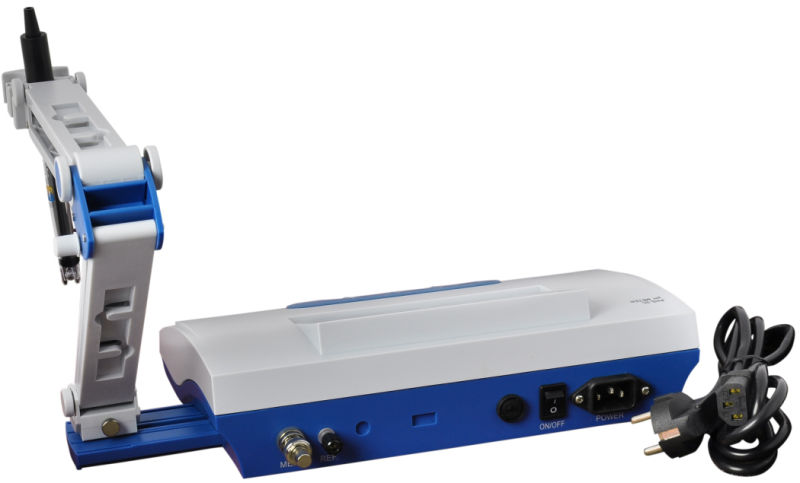

Model: PHS-3E
Measurement Range:
PH: (-2. 00~18. 00)PH
Mv: (-1999~0)Mv, (0~1999)Mv
Temp: (0~99. 9)º C
Resolution:
PH: 0. 01pH
Mv: 1MvTemp: 0. 1º C
Accuracy:
Ph: ± 0. 01pH± 1bit
Mv: : ± 1mV± 1bit
Temp: ± 0. 3º C± 1bit
Input Impedance:
1*1012 Ω
Stability: ± 0. 01pH± 1bit/3h
Auto. Temp. Compensation range:
0~60º C
Model
Specifications | PHS-3C | PHS-3E |
| Parameters | pH / mV(ORP) | pH / mV(ORP)/ºC |
| Range | pH | 0.00~14.00 | -2.00~18.00 |
| mV | ±1999 |
| Temperature | - | 0.0~99.9 |
| Resolution | pH | 0.01 |
| mV | 1 |
| Temperature | - | 0.1ºC |
| Accuracy | pH | ±0.01±1 bit |
| mV | ±0.1%(FS) |
| Temperature | - | ±0.3ºC±1 bit |
| Stability | (0.01pH±1 bit)/3h |
| Temp Compensation | Manual:0.0~60.0ºC | Manual/Auto:0.0~99.9ºC |
| Calibration | Up to two |
| Buffer Recognition | Automatic: 4.00,6.86,9.18 |
| Display | LCD; dual parameter |
| Power | AC (220±22)V,(50±l )Hz |
| Case outside serial No. | WXS-A008-1 |
| Dimension (mm),Weight(kg) | 300×220×90,1.3 |
